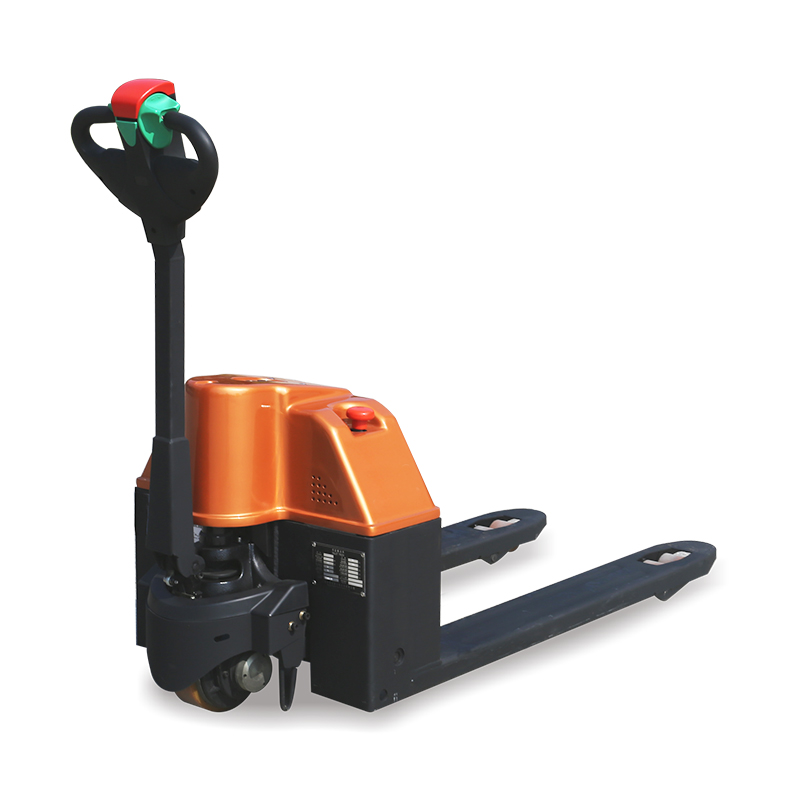

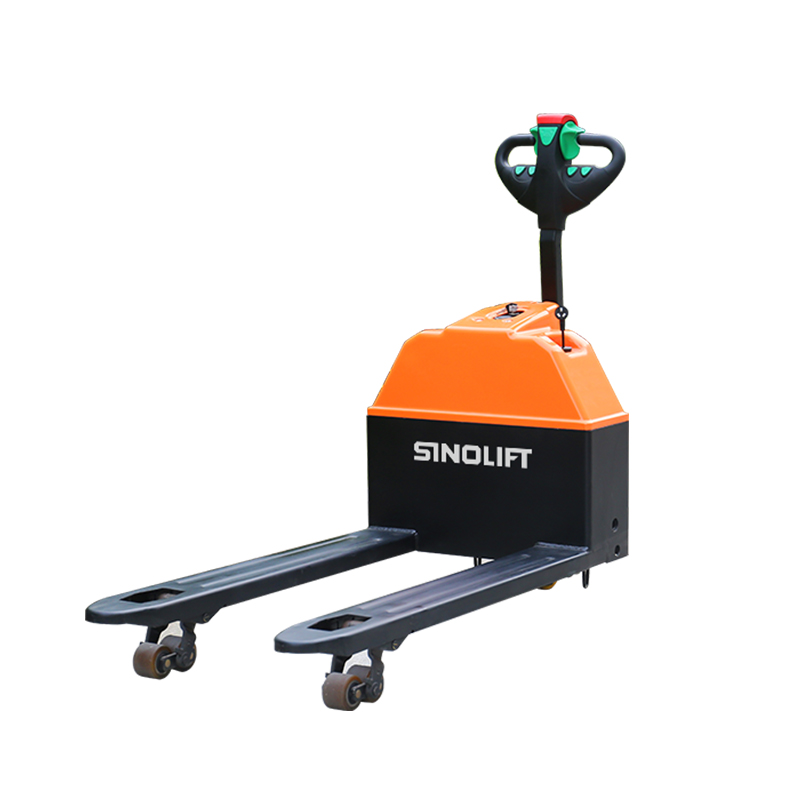

Name:CBD15A Acid Battery Operated Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Other
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 Acid Battery Operated Pallet Truck
 06 Forklift Mounted Attachment
 07 Lifting Crane Equipment
 08 Jack and Skates
 09 Electric Stacker
 10 Counter Balanced Forklift

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

CBD15A Acid Battery Operated Pallet Truck

Use high quality assembly from industry's mature suppliers to ensure the funciton of the truck's power system and its stabilty.
1.Strong power, effort saving
Capacity 1.5 ton, reaching most customers' demands in goods transit.
Comparing to the hand pallet truck, more efficienct and covenient while lifting, lowering and walking.
2.Solid and durable
High quality assembly result in longer truck operation life.
Solid body frame.

Specifications:
Model CBD15A
Performance Maximum load capacity Q kg 1500
with load center at C mm 600
Maximum lifting height H3 mm 205
Travel speed (without load) km/h 4
Travel speed (with load) km/h 3.5
Lifting speed (without load) mm/s 30
Lifting speed (with load) mm/s 35
Ascend slope ability (without load ) % 10
Ascend slope ability (with load ) % 3
Weight (with battery) kg 210
Dimensions Overall length of frame L mm 1608
Overall width of frame B mm 685
Wheelbase Y mm 1322
Outer fork width b5 mm 540/685
Fork length mm 1150/1220
Fork width mm 160
Fork lowered height S mm 85
Min frounf height mm 35
Steering wheel working height h14min mm 920
h14max mm 1260
Turning radius Wa mm 1480
Min intersecting aisle width Asts mm 1950
Tire Front wheel mm Φ80x60
Drive wheel mm Ф210x70
Wheel material polyurethane
Electrical components Drive motor type AC series motor
Rated output kw 0.75
Hoist motor type DC series motor
Rated output kw 0.8
battery Voltage V 24
Capacity AH 75/80
Weight kg 25/27
