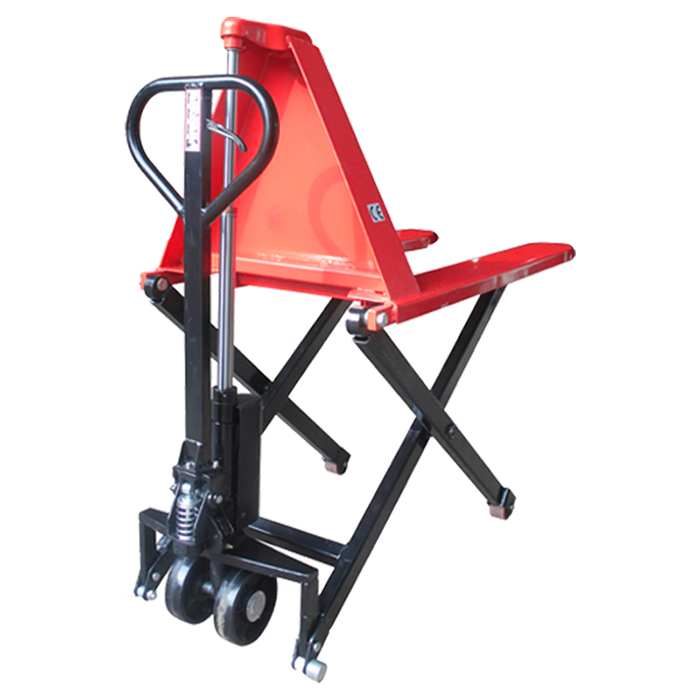

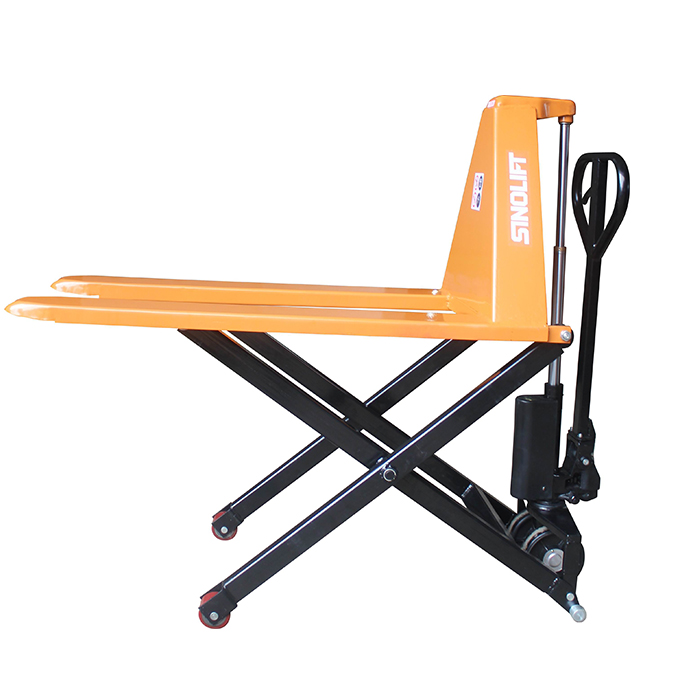

Name:NPH Hand Scissors Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Other
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 Acid Battery Operated Pallet Truck
 06 Forklift Mounted Attachment
 07 Lifting Crane Equipment
 08 Jack and Skates
 09 Electric Stacker
 10 Counter Balanced Forklift

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Specifications:

Model NPH1000 NPH1500 NPH1000(N)
Capacity (kg) 1000 1500 1000
Total lift height (mm) 800 800 800
Lowered fork height (mm) 85 85 85
Size of fork (mm) 162x50 162x50 162x50
Fork length (mm) 1150 1150 1150
Width over the forks * (mm) 520/550/685 520/550/685 550/680
Height of handleless (mm) 975 1050 975
Steering wheel (mm) Ø150x50 Ø150x50 Ø180x50
Fork wheel (mm) Ø74x50 Ø74x50 Ø74x50
Truck weight (kg) 112 125 133
pcs/20" container (pcs) 120 100 72
