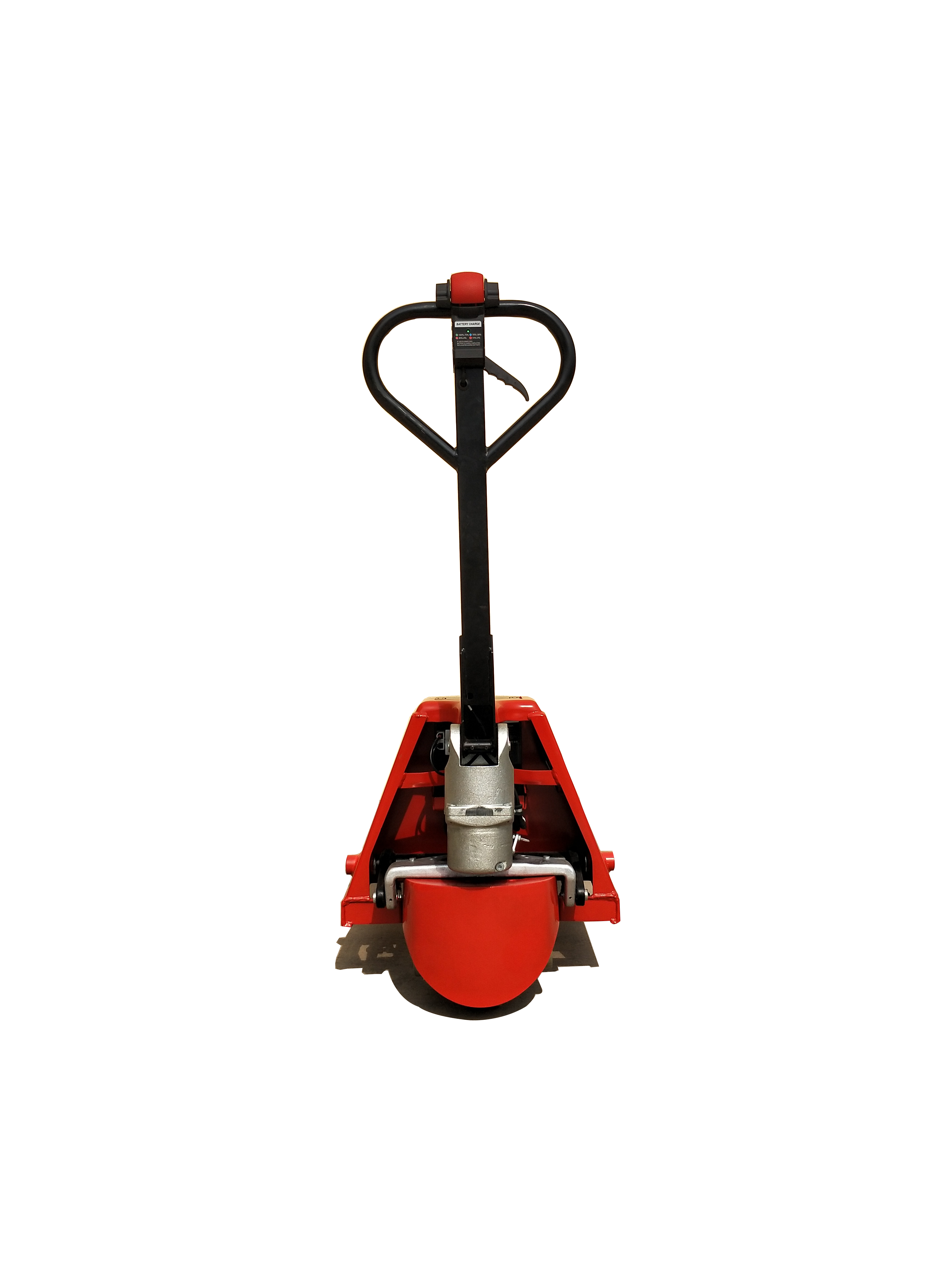

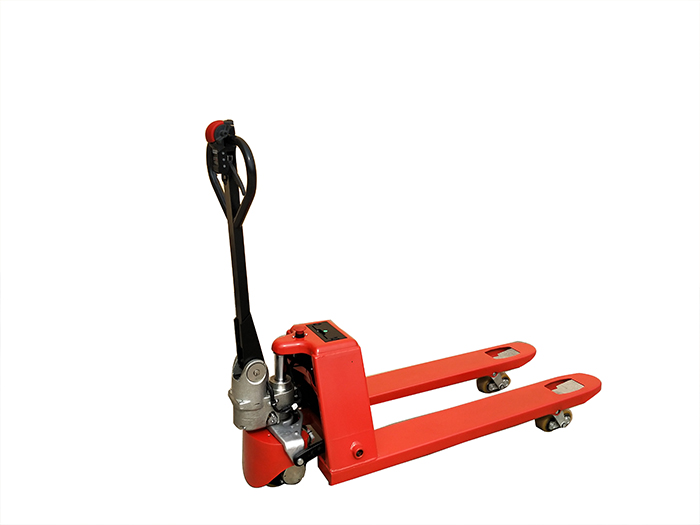

Name:ET20MH-P Full Electric Hybird Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Other
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 Acid Battery Operated Pallet Truck
 06 Forklift Mounted Attachment
 07 Lifting Crane Equipment
 08 Jack and Skates
 09 Electric Stacker
 10 Counter Balanced Forklift

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

light weight, great capacity, excellent passing ability:

2000KG capacity, light weight and compact size equivalent to hand pallet trucks.

patented design:

new integrated control head design, easy & comfortable operation.

external control system:

patent designed external control system not only protects controller in place but also provides easy access for maintenance.

operation:

ergonomically-designed tiller head helps increase efficiency; internal charger for easy charging.

Specifications:
Brand SINOLIFT
model ET20MH-P
Rated load (KG) 2000
Load center distance (MM) 600
Wheelbase (MM) 1240
Weight with battery kg 135/145
Drive wheel size (diameter x width) mm 180x70
Bearing wheel size mm 80x60
Lifting height (mm) 200
Vehicle height (mm) 1250
Height of forks after lowering (mm) 85/76
Vehicle length (mm) 1540/1610
Vehicle width (mm) 540/680
Outer width of fork (mm) 540/680
Minimum ground clearance (mm) 30
Body length 390
Turning radius (mm) 1320/1390
AST,1000X1200 (mm) 1800
AST,800X1200 (mm) 1710
Driving speed, laden/unladen km/h 4/4.5
Gradeability, full/unloaded % 5.0/16.0
Lifting speed m/s 0.025
The rate of decline m/s 0.016
Drive motor power kw 0.75
Lifting motor power kw 0.35
lithium battery V/Ah 24/25
Drive control type PG
