Name:ET20MH-P-S Scale Full Electric Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Other
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 Acid Battery Operated Pallet Truck
 06 Forklift Mounted Attachment
 07 Lifting Crane Equipment
 08 Jack and Skates
 09 Electric Stacker
 10 Counter Balanced Forklift

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

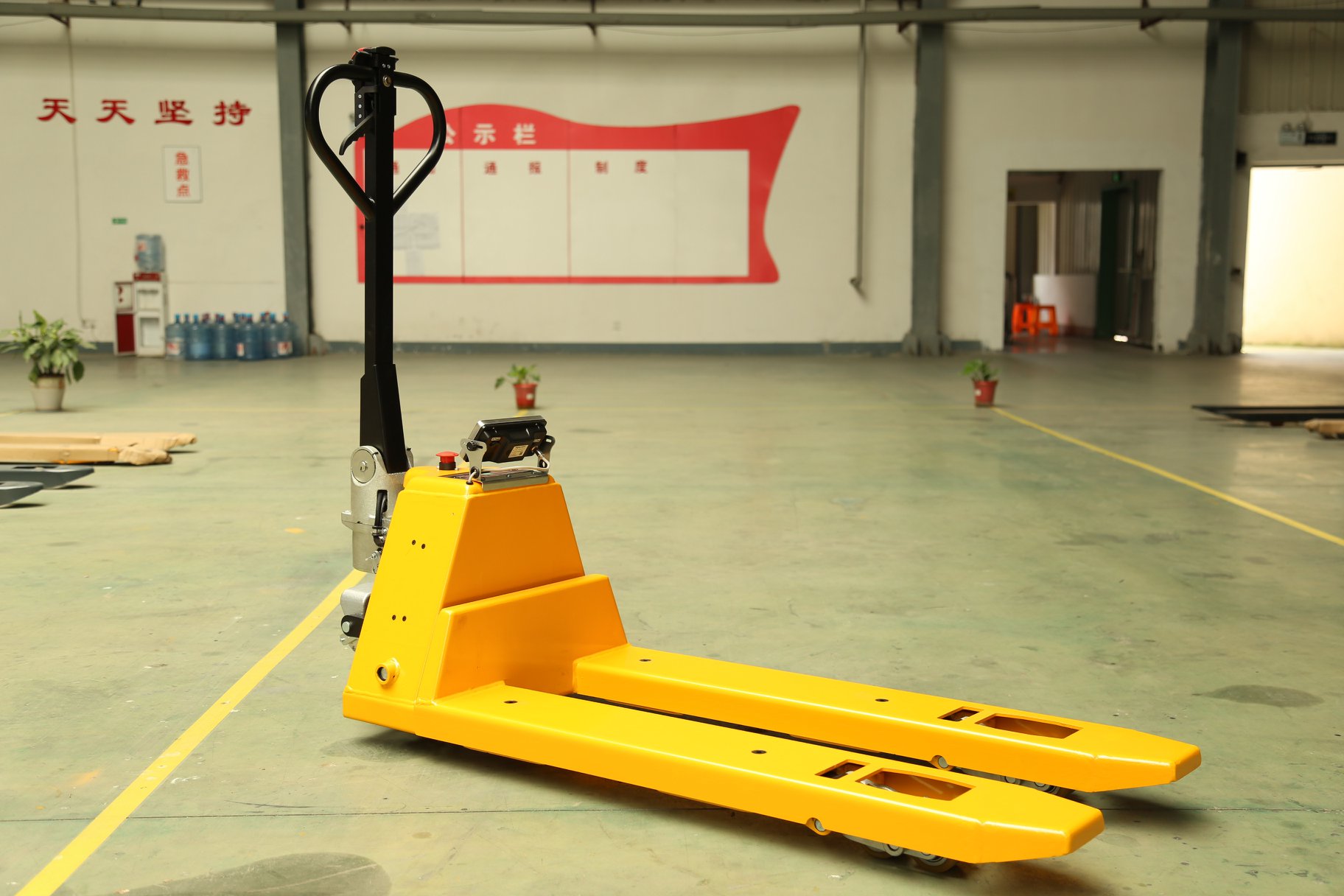

ET20MH-P-S Scale Full Electric Pallet Truck

Specifications:
model ET20MH-P-S
Rated load kg 1500
Load center distance mm 600
Lifting height mm 200
Outer width of fork mm 540/680
Minimum fork height mm 85
Width of single fork mm 163
Fork length mm 1150/1220
Minimum ground clearance mm 30
Maximum travel speed with full load km/h 4
Maximum travel speed without load km/h 4.5
Maximum gradeability with full load 0.03
Maximum gradeability without load 0.2
Minimum turning radius mm 1320/1390
Vehicle length mm 1540/1610
Vehicle width mm 540/680
Vehicle height mm 1250
Wheelbase 1170/1240
Lithium battery capacity AH/24V 20
Selfweight kg 125
