Products – Scissor Lift Platform

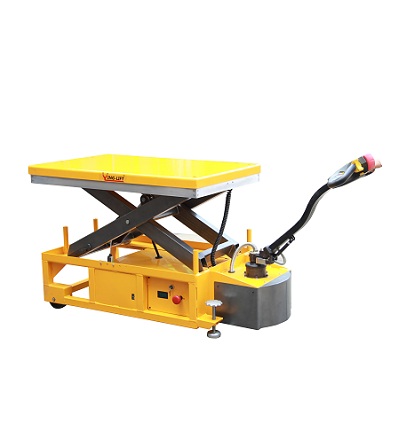

Name:YLF120 Mobile Electric Hydrauli Scissor Lift Table
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Man machine integrated multi-functional control handle, stepless speed regulator, integrated hydraulic pump station, stable and powerful lifting of goods, high-power walking drive;

2. Equipped with large capacity maintenance free Volta battery

3. Anti pinch shear fork design, self-lubricating design is adopted at the pivot position to prolong the service life

4. Aluminum alloy safety bar is set under the table, and it will stop falling immediately when it encounters obstacles to ensure safety

5. Heavy duty oil cylinder is equipped with explosion-proof valve, which can prevent the lifting platform from falling down quickly when the oil pipe bursts

6. Equipped with safety wedge block, convenient for maintenance.

Specifications:

Model



YLF120

Drive type



Electric

Driving type



waikie

Rated capacity

kg

1200

Turning radius

mm

1500

Material of wheels



polyurethane

Braking type



Electromagnetic braking

Driving motor power

kw

1.2

Lifting motor power

kw

2.2

Battery

V/Ah

24/120

Dimension

mm

1300*820

Min.height

mm

540

Max.height

mm

1300

Net weight

kg

426
