Feature:

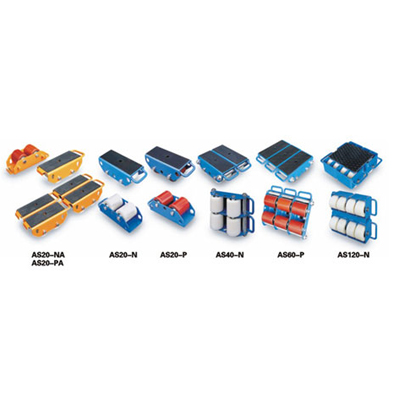

AS Adjustable Skates

▲Shifting skates can be used wherever heavy objects have to be moved. The Load can be lifted using either the roller crowar or a jack, allowing the skates to be easily positioned.
▲The large diameter sealed nylon rollers ensure ease of movement and spred the load, protecting high quality floors from damage caused by high point loads and oil/grease contamination.
▲The skates are maintenance free and are fitted with handles for ease of carrying and positioning. The platforms of the skates are fitted with a rubber surface which helps stability and protect the object being moved.

Specifications:


MODEL AS20-N AS40-N AS60-N AS120-N
AS20-P AS40-P AS60-P AS120-P
Capacity kg/lbs 2000 4400 4000 8800 6000 13200 12000 26400
Load wheels Nos. 2 4 6 8
Wheel size mm/inch ø82 x 100 ø3-1/4" x 3-15/16" ø82 x 100 ø3-1/4" x ø82 x 100 ø3-1/4" x 3-15/16" ø115 x 60 ø4-1/2" x 2-3/8"
Skate size mm/inch 115 x 270 x 110 4-1/2" x 10-5/8" x 4-5/16" 230 x 270 x 110 9" x 10-5/8" x 4-5/16" 345 x 270 x 110 13-9/16" x 10-5/8" x 4-5/16" 400 x 345 x 145 15-3/4" x 13-9/16" x 5-11/16"
Weight kg/lbs 7.5 17 kg 37 25 55 40 88
