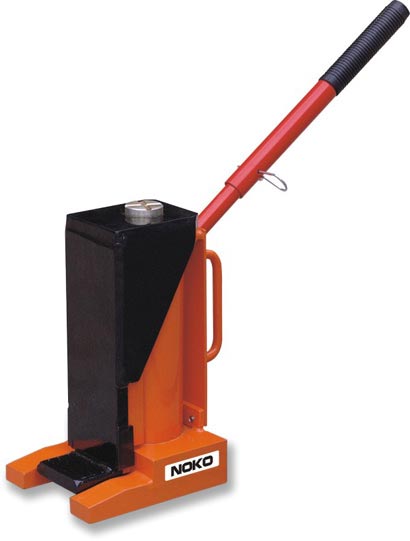

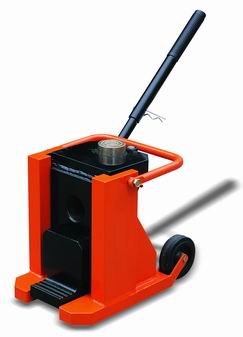

Name:TB Hydraulic Machine Jack
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

▼Machinery Jack
●With double supporting lever for wider application
●Heavy duty designed and compact structure
●Conform to CE safety standard

Specifications:


Model TB100 TB200
Lifting Capacity on Top kg 7.5 15
Lifting Capacity on Toe kg 6000 12000
Lifting stroke mm 160 140
Lifting Range of Top mm 320-560 325-545
Min.Loading Height Using Lifting Toe mm 35 40
Lifting Range of Toe mm 160 /
Min.Loading Height Using Lifting Toe at Max.Adjustment mm 35-195 40-260
Net Weight kg 25 69
