Feature:

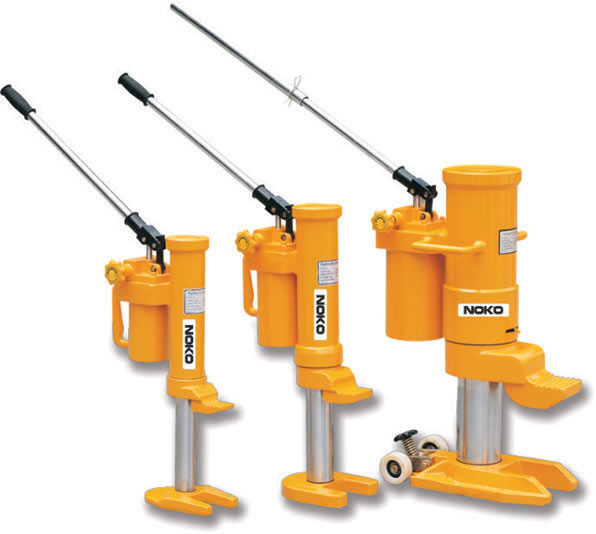

Hydraulic Jack HM series
HU-LIFT hydraulic jacks for repairs, maintenance and installation of heavy machines
▲ Compact and stable construction.
▲ Can be used in any position.
▲ Housing revolves 360 degrees.
▲ Lowering speed can be accurately adjusted.
▲ Protected against overloading.
▲ Pump lever is removable.
▲ According to CE and US standard USA ASME/ANSI B30.1.1986.


CAUTIONS
To avoid possible personal injury or damage to equipment
▲ Do not exceed the maximum load capacity of the jack.
▲ Do not add additional load to a lifted load.
▲ Do not use in unstable or hazardous positions.
▲ Unit must be used on flat surfaces able to carry the load.
▲ The load must be stable during lifting.
▲ An unstable load may cause the jack or load to slip.
▲ Do not use jack(s) if damaged, altered or in poor condition.
▲ Do not lift people or loads with people on them.
▲ Do not lift at the end of the toe. Fully engage the load with the toe.



Specifications:
Type   HM50 HM100 HM250
Capacity (tonne) 5 10 25
Lifting Range of Foot (mm) 25-230 30-260 58-273
Lifting Range of Head (mm) 368-573 420-650 505-720
Max. Lever Force (kg) 38 40 40
Net Weight (kg) 25 35 102
