Name:Mechanical Steel Jack
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Other
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 Acid Battery Operated Pallet Truck
 06 Forklift Mounted Attachment
 07 Lifting Crane Equipment
 08 Jack and Skates
 09 Electric Stacker
 10 Counter Balanced Forklift

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

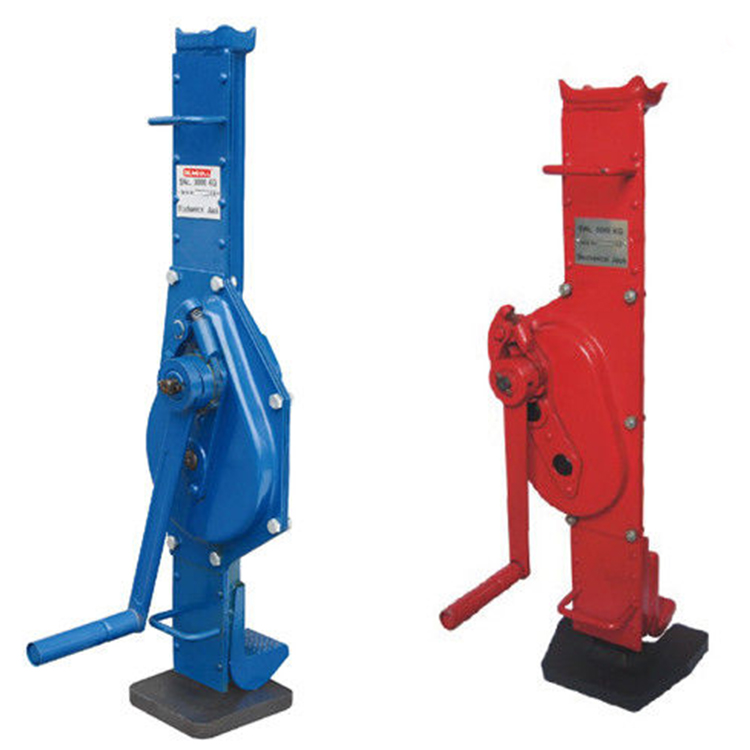

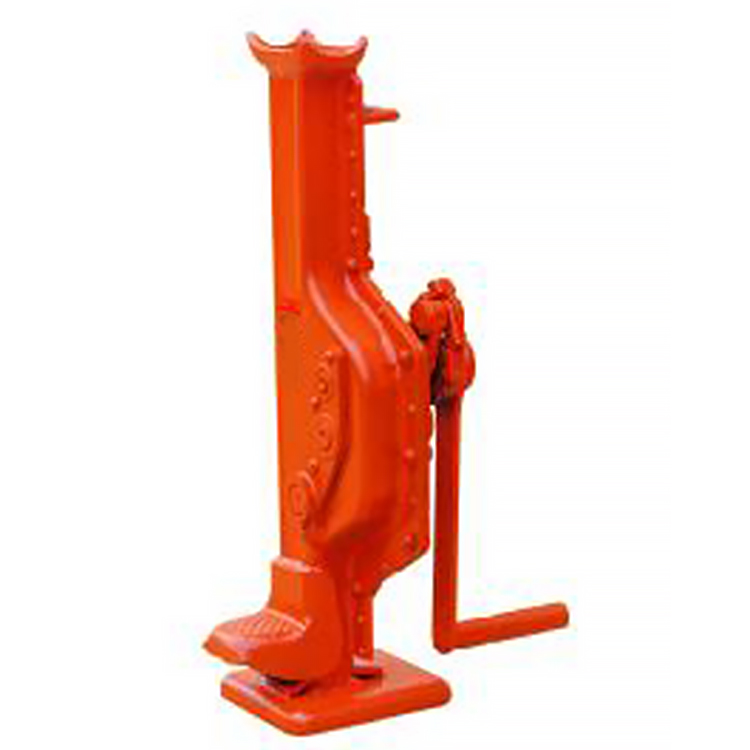

Steel Jack MJ series

○ Steel jack MJ is developed in accordance with the latest safety regulation.
○ With milled rack, geared wheels and tempered parts of driving gear
○ Suitable for lifting loads of any type.
○ Lifting either with fixed toe or on clawed head.
○ Safety crank with folding handle.
○ Stabilizers ensure maximum stability.
○ CE certificate.
Specifications:
Model MJ1.5 MJ3 MJ5 MJ10
Rated lifting capacity (kg) 1500 3000 5000 10000
Lifting range of toe (mm) 65~415 70~420 70~370 80~380
Lifting range of top (mm) 725~1075 725~1075 725~1025 800~1100
Load on the operating handle (N) ≤280 ≤280 ≤280 ≤400
N.W. (kg) 13.5 22 28 46
Packing size (mm) 220×160×770 230×215×770 255×225×770 830×275×325
