Name:JT03 Bottle Jack
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Other
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 Acid Battery Operated Pallet Truck
 06 Forklift Mounted Attachment
 07 Lifting Crane Equipment
 08 Jack and Skates
 09 Electric Stacker
 10 Counter Balanced Forklift

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

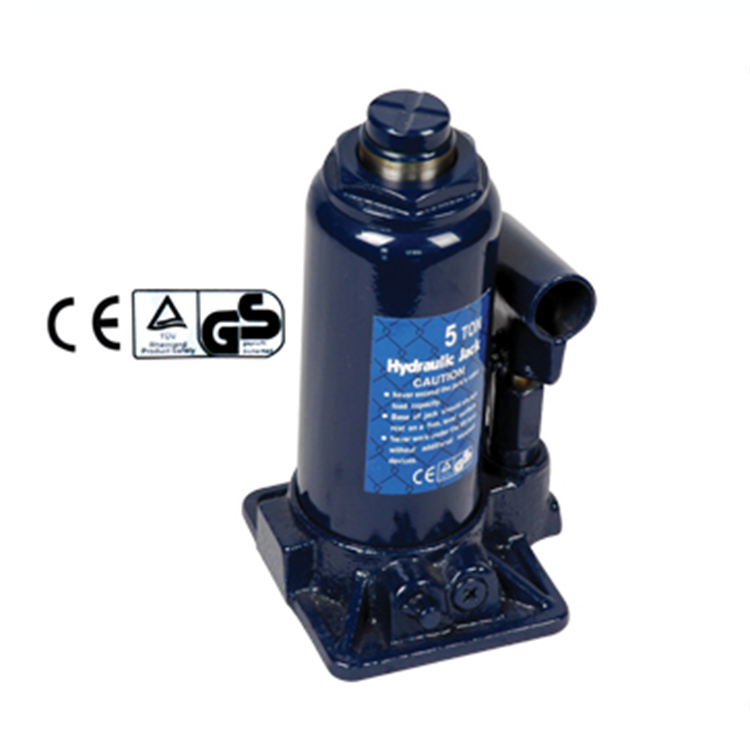

JT03 Bottle Jack

Versatile jacks can be used vertically (not upside down) or at any angle to no more than 5 degree from vertical position.
Machined and polished cylinder walls ensure straight lifts preventing uneven wear.
Heat treated adjustable extension screw with cleaned lift saddle prevents slippage.
Patented bypass mechanism protects hydraulic cylinder from overpumped durable baked blue enamel finish.

Specifications:
Model Lifting Capacity Min. height Lifting Height Adjust Height Max. Height Net Weight Gross Weight Measurement Quantiy/Case Quantiy/1x20"
ton mm mm mm mm kg kg cm pcs pcs
JT0203 2 158 90 60 308 2.3 25 52x25.5x19 10 6250
JT0303 3 195 125 60 380 3.3 28 46x26.5x22.5 8 4600
JT0503 5 197 125 80 402 4.4 29 37x27.5x22.5 6 3500
JT0803 8 205 125 80 410 5.4 24 29.5x27.5x22.5 4 2430
JT1003 10 205 125 80 410 6 26 30.5x29.5x24 4 2210
JT1203 12 215 125 80 420 7.2 16 30.5x16.5x24 2 1800
JT1503 15 225 140 80 445 8.3 19 31.5x17x24.5 2 1460
JT2003 20 244 145 80 469 11.5 24 34.5x19.5x27 2 1400
JT3003 30 285 180 / 465 14.6 31 37.5x19x31 2 970
JT5003 50 300 180 / 480 33 34 24x22x32 1 480
