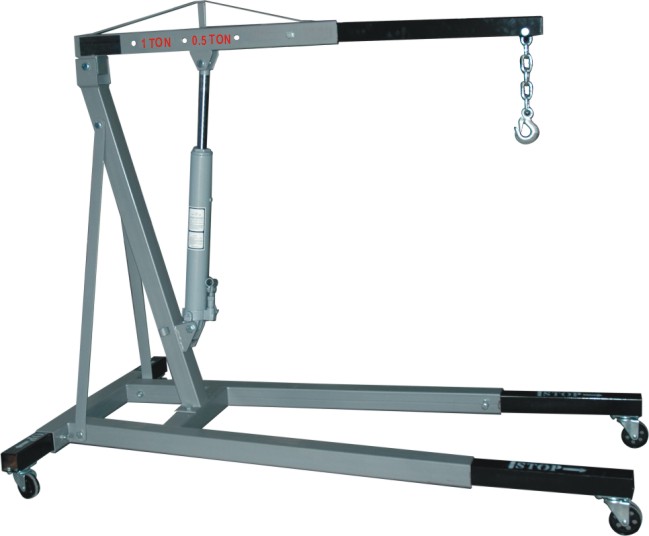

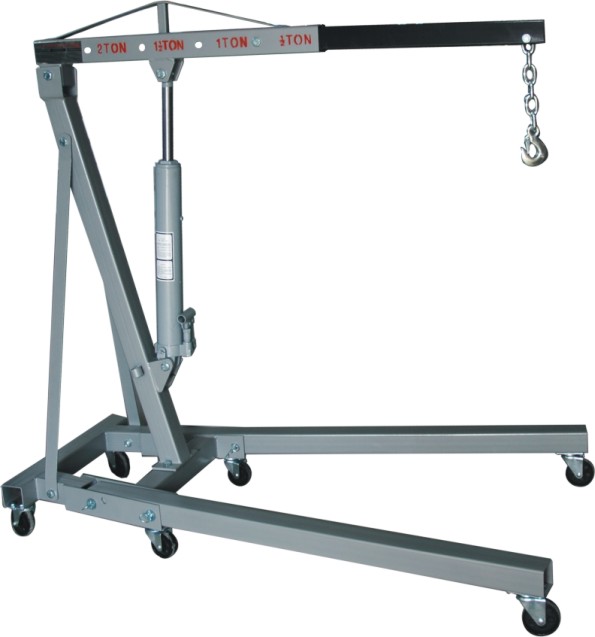

Name:SP500F SP1000F SP2000F SP2000 Shop Crane
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
MOBILE FLOOR CRANE
Designed for heavy-duty lifting, loading and positioning.
Ruggedly-constructed; will give dependable, long-lasting use Standard.
handpump hydraulic lift cylinder.
Lifts load from 0 mm to 2000 mm.
Available capacity: From 500 Kgs to 2000 Kgs.
Available Options: Electric operated & Battery operated.
Specifications:


Model SP500F SP1000F SP2000F SP2000
Foldable Yes No
Capacity kg 500 1000 2000 2000
Capacity at position P1 500 1000 2000 2000
P2 400 750 1500 1500
P3 250 500 1000 1000
P4 150 250 500 500
A mm 1403 1650 1403 1350
B mm 200 170 200 185
C mm 1710 1680 1710 1620-2320
D mm 900 1160 900 1270
E mm 180 95 180 225
W1 mm 810 500 810 945-1340
W2 mm 1015 1070 1015 800-960
H1 mm 345 550 345 185
H2 mm 1820 1785 1820 1945
H3 mm // 180 // 485
H4 mm 2240 1845 2240 2410
Net Weight kg 75 96 95 113
