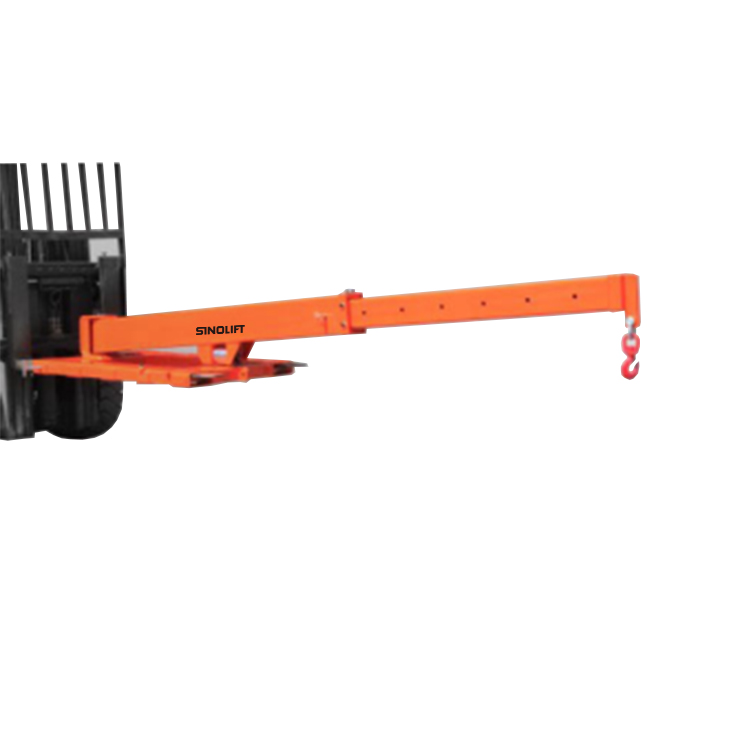

Name:YLC01 Dip-angle Telescopic Rotatable Fork Mounted Jibs
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Dip-angle Telescopic Rotatable fork mounted Jibs

The lifting arm can adjust different rotation Angle in 5 different holes.The hook is rotatable with a safety latch.

With two locking screw and safety heavy chains to ensure fork not to shift or slip.

The adjustable telescopic super long lifting arm is suitable for the area where the forklift is not easy to enter for operation, especially suitable for lifting long strip goods in containers with forklift.

Specifications:

Model YLC01

A B C D E F G H
Length Positions mm 1195 2090 2319 2548 2776 3005 3233 3462
Capacity kg 2000 1144 1031 938 861 795 739 690
Fork opening mm 516
Fork pocket mm 180×65
Overall size(L×W×H) mm 2100×910×500
Net Weight kg 238
