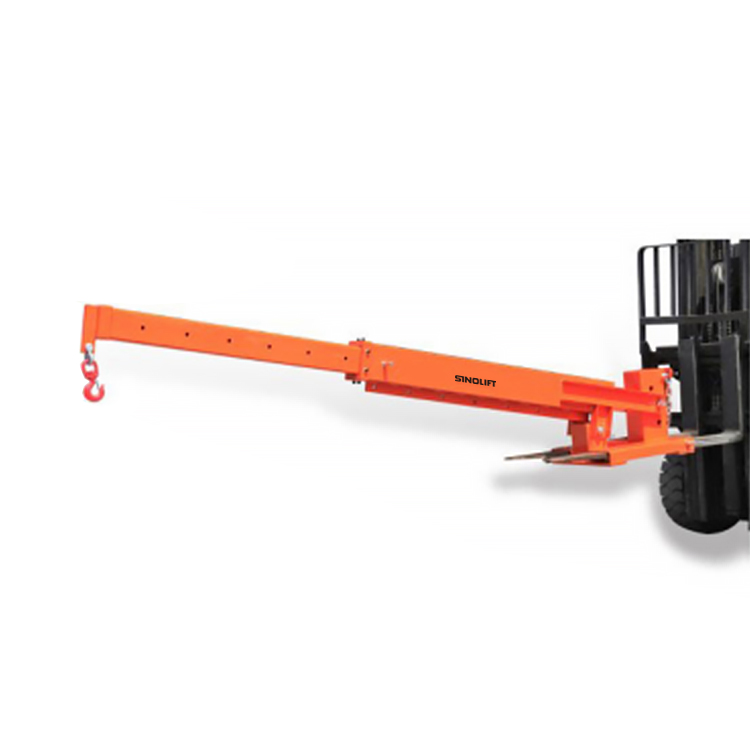

Name:YLB01 Dip-angle Telescopic Fork Mounted Jibs
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Dip-angle Telescopic Fork Mounted Jibs

Convert a forklift truck into a mobile crane to reach and transport long and awkward loads from inaccessible location;

Vertify load center of forklift truck;

With two locking screw and safety heavy chains to ensure fork not to shift or slip;

Applicable fork sectional size≤180×60mm(W×T);

Supplied complete with one safety swivel hook with bow shackle&one rigid hook.

Specifications:
Model YLB01 A B C D E F G H I J K L M N
Length Positions mm 760 990 1220 1450 1680 1910 2140 2375 2605 2835 3065 3295 3525 3755
Capacity kg 3000 2303 1869 1572 1357 1194 1065 960 875 804 744 692 647 607
13° Length Positions mm 740 965 1190 1415 1640 1865 2090 2319 2544 2769 2994 3219 3444 3669
Capacity kg 3081 2363 1916 1611 1390 1223 1091 983 896 823 762 708 662 621
26° Length Positions mm 710 919 1127 1336 1544 1752 1961 2174 2382 2591 2799 3007 3216 3424
Capacity kg 3211 2481 2023 1707 1477 1301 1163 1049 957 880 815 758 709 666
Fork opening mm 166
Fork pocket mm 180×74
Overall size(L×W×H) mm 2410×540×525
Net Weight kg 240
