Name:YLA01 Horizontal Telescopic Fork Mounted Jibs
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

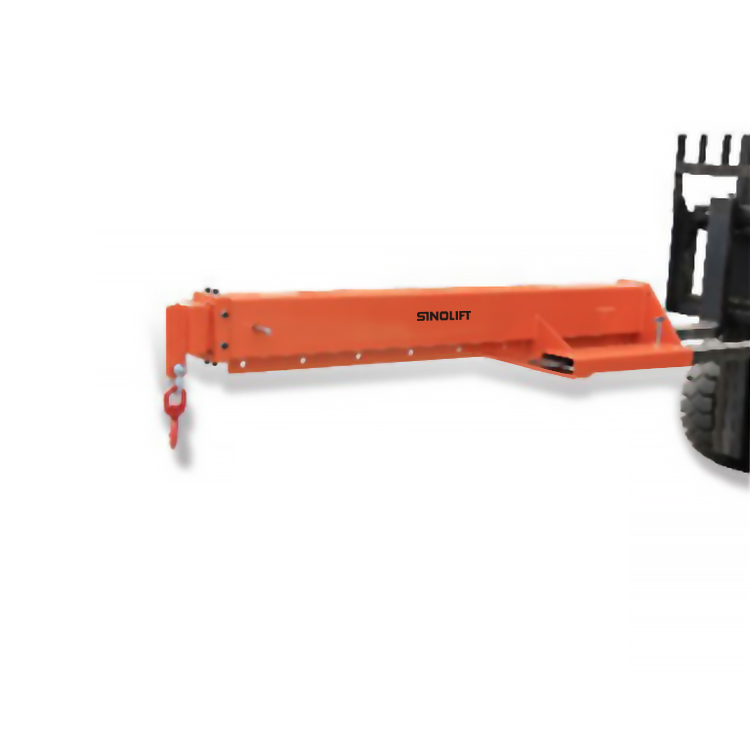

Horizontal Telescopic Fork Mounted Jibs

Convert a forklift truck into a mobile crane to reach and transport long and awkward loads from inaccessible location.

Vertify load center of forklift truck.

With two locking screw and safety heavy chains to ensure fork not to shift or slip.

Applicable fork sectional size ≤180×60mm(W×T).

Supplied complete with one safety swivel hook with bow shackle&one rigid hook.

Specifications:
Model YLA01 A B C D E F G H I J K L M
Length Positions mm 730 960 1190 1420 1650 1880 2115 2345 2575 2805 3035 3265 3495
Capacity kg 3000 2280 1840 1542 1327 1164 1035 933 850 780 721 670 626
Fork opening mm 284
Fork pocket mm 180×74
Overall size(L×W×H) mm 2410×540×525
Net Weight kg 240
