Products – Access platform

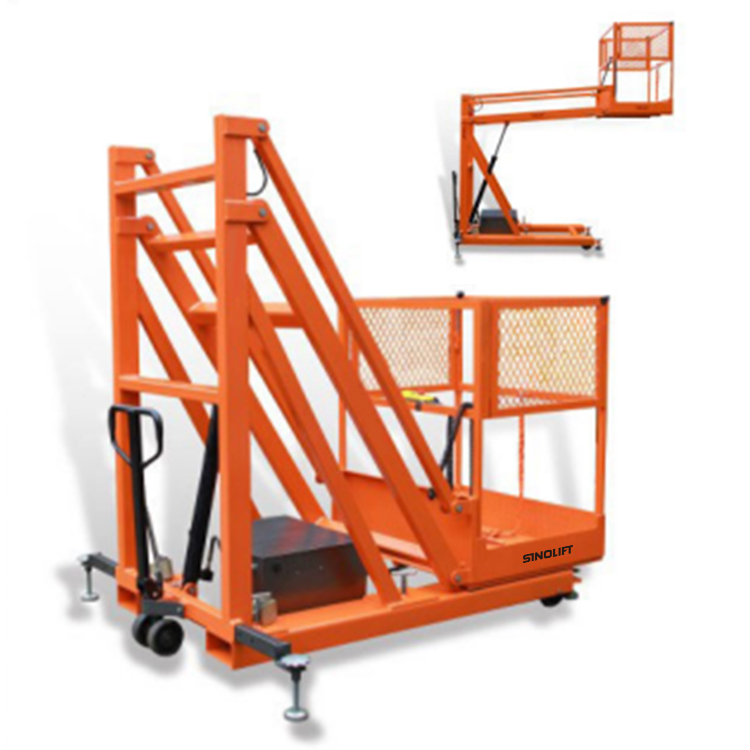

Name:NK28B Forklift Access and Maninenance Platform
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Mobile Forklift Maintenance Platform NK28B

High quality power pack unit provides a steadily lifting;

Conforms to Health and safety Guidance PM28 and GN28 standard;

Standard: 12VDC-120Ah Battery VARTA also can be to forklift power;

Optional: Ac power

Anti-exploded valve to prevent rapidly lowering;

Applicable to use on the ground, and ensure the supporting leg is fixed on the ground;

Can be easily work with forklift are with triple insurance:

A. Two bolts to fix;
B. Two chain to buckle;
C. Four fixed T bolt onto forklift to ensure a high safety&reliability.

Regular to check those rotating parts, and be properly lubricated.

Suitable for hand push on the ground,
and also can be easily work with 3T or more forklift.

Specifications:
Model NK28B
Capacity kg 280
Lifting height mm 3180
Deck size mm 1000*800
Power pack V/W 12/1200DC
Battery V/Ah 12/120
Net weight kg 490
Overall size mm 2200*2060*1020
Wheel size mm Nylon φ150*50
