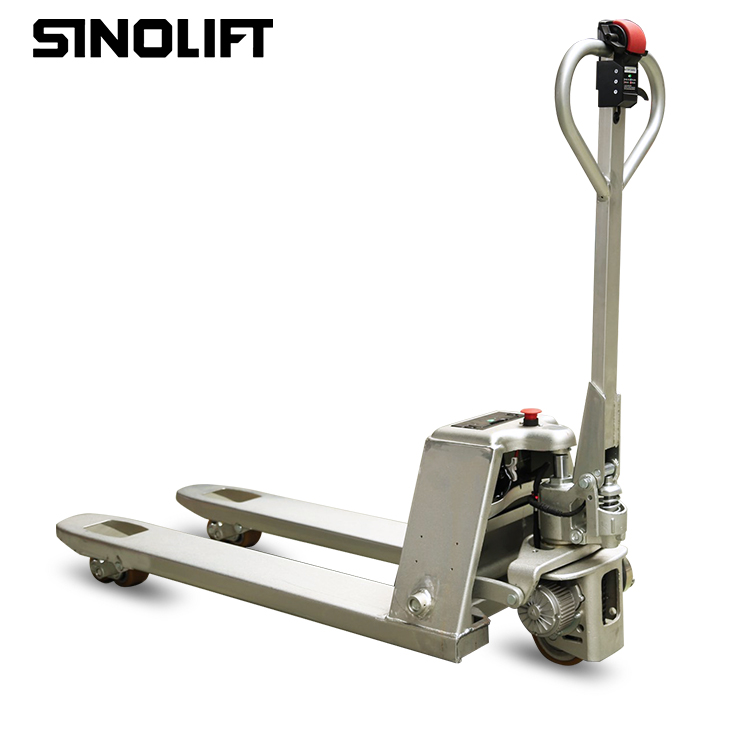

Name:ET20MH-P-F Stainless Steel Full Electric Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Specifications:
Model ET20MH-P-G ET20MH-P-F
Material galvanized stainless steel
Operation type Walking type Walking type
Rated Capacity KG 2000 2000
Load center distance MM 600 600
Wheelbase MM 1240 1240
Weight with battery kg 135/145 135/145
Tyre type PU PU
Drive wheel size(D x W ) mm 180x70 180x70
Carrier wheel size mm 80x60 80x60
Lifting height mm 200 200
Vehicle height mm 1250 1250
Fork height after lowering mm 85/76 85/76
Vehicle length mm 1540/1610 1540/1610
Vehicle width mm 540/680 540/680
Leg width mm 540/680 540/680
Minimum ground clearance mm 30 30
Length of vehicle body 390 390
Turning radius mm 1320/1390 1320/1390
AST,1000X1200 mm 1800 1800
AST,800X1200 mm 1710 1710
Speed (empty/full) km/h 4/4.5 4/4.5
Gradient(empty/full) % 5.0/16.0 5.0/16.0
Lifting speed m/s 0.025 0.025
Lowering speed m/s 0.016 0.016
Drive motor power kw 0.75 0.75
Lifting motor power kw 0.35 0.35
Lithium battery V/Ah 24/25 24/25
Drive control type PG PG
Service brake Regenerative brake Regenerative brake
Parking brake Electromagnetic brake Electromagnetic brake
