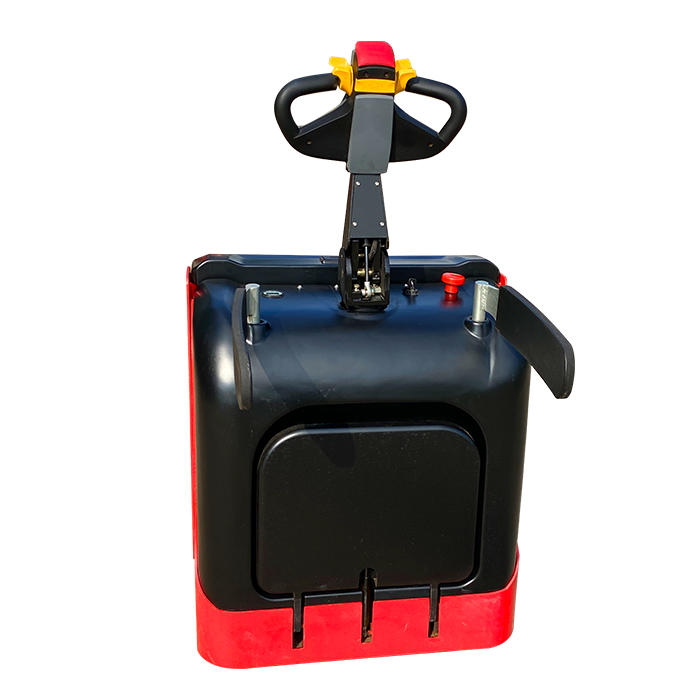

Name：CBD20M CBD25M CBD30M Full Electric Pallet Truck
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
 Hand Pallet Truck
 Electric Pallet Truck
 Electric Stacker
 Reach Truck
 Counter-balanced Eletric Forklift
 Electric Tow Tractor
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
Pedestrian Pallet Truck Highlights
· Enhanced stability and resistance to wear and torsion thanks to the heavy duty steel drive frame featuring 10 mm thick welded rear plate, robust fork bodies, pull rods and torsion bar
· The enclosed full AC drive motor is vertically mounted with easy service access and is well protected from splashes and debris
· The cover is made of a durable engineered thermoplastic elastomer, which is flexible, resistant to chipping and provides excellent protection of components
· Shortened, mid-mounted handle positions the operator closer to the truck giving excellent visibility of the load and the fork tips when entering a pallet
· Easy to operate and manoeuvre in tight spaces, particularly in a trailer
· Adjustable performance settings to suit the application
· Operators can transport and lift a pallet in one fluid and seamless movement with the exclusive Intelligent Lift™ option
· A ‘creep speed button’ slows the truck’s travel speed for enhanced control and can be selected without having to stop the truck
· The Intelligent Slow Down™ option can further improve load stability and operator confidence by reducing the maximum speed once the angle of cornering has reached 30°
· Battery side extraction is available as an option on the P1.8-2.2 models, making changing the battery a simple and quick operation, to assist in more intensive applications
· Optional on-board charger is enclosed within the drive frame, protected from the harsh elements and washing down
· Excellent serviceability thanks to easily accessible and intelligently designed components, along with a display showing diagnostic service codes, helps to minimise downtime during routine maintenance

Specifications：
Model CBD20M CBD25M CBD30M
Power Type Electric Electric Electric
Operation Type Stand-on Stand-on Stand-on
Steering Mode Electric Power Steering
Load Capacity Q kg 2000 2500 3000
Load Center C mm 600 600 600
Wheelbase y mm 1410 1410 1410
Total Weight(With Battery) kg 650 650 650
Axle Load( Loaded):rear/front kg 900/1750 1070/2080 1245/2425
Axle Load( Unloaded):rear/front kg 545/105 545/105 545/105
Overall Length L1/L2 mm 1800/2265 1800/2265 1800/2265
Overall Width W1 mm 810 810 810
Fork Size l/e/s mm 1150×170×55 1150×170×55 1150×170×55
Width of Fork b2 mm 540/685 540/685 540/685
Ground Clearance at Fork h3 mm 85 85 85
Lifting Height h2 mm 205 205 205
Ground Clearance at center of wheelbase m1 mm 55 55 55
Height of Operating Handlebar(Min./Max.) h14 mm 1000/1380 1000/1380 1000/1380
Turning Radius(Footboard Fold/Unfold) Wa mm 1660/2100 1660/2100 1660/2100
Right Stack Aisle Width Ast mm 2400/2840 2400/2840 2400/2840
(Pallet size 1000*1200,Footboard Fold/Unfold)
Right Stack Aisle Width Ast mm 2315/2755 2315/2755 2315/2755
(Pallet size 800*1200,Footboard Fold/Unfold)
Tyre Type Polyurethane Polyurethane Polyurethane
Tyre Size(Front) mm Φ85*70 Φ85*70 Φ85*70
Tyre Size(Balance Wheel) mm Φ115*55 Φ115*55 Φ115*55
Tyre Size(Driving Wheel) mm Φ230*75 Φ230*75 Φ230*75
Tyres Number front/rear(x=drive wheel) 4/1x+2 4/1x+2 4/1x+2
Drive Damping Method Drive frame integral rail type spring shock absorption
Traveling Speed(Loaded/Unloaded) Km/h 7.5/8 6.0/7 5.0/7
Lifting Speed(Loaded/Unloaded) mm/s 22/35 22/30 22/30
Lowering Speed(Loaded/Unloaded) mm/s 30/26 30/26 30/26
Max. Gradeability(Loaded/Unloaded) % 8/15 8/15 6/15
Service Brake Type Electromagnetic/Regeneration
Parking Brake Type Electromagnetic
Drive Motor Power(AC) KW 1.5 1.5 1.5
Pump Motor Power(DC) KW 0.8 0.8 2.2
Battery Voltage/Capacity K5 V/Ah 24V/210 24V/210 24V/240
Battery Weight kg 188 188 210
Controller Brand CURTIS CURTIS CURTIS
Controller Model 1232E 1232E 1232E
Noise Level dB 70 70 70
