Products – Access platform

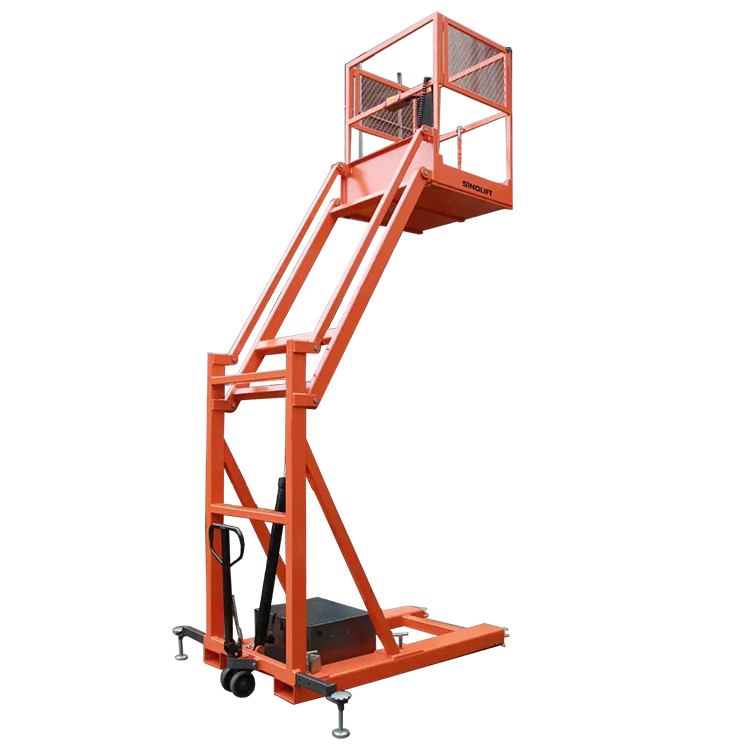

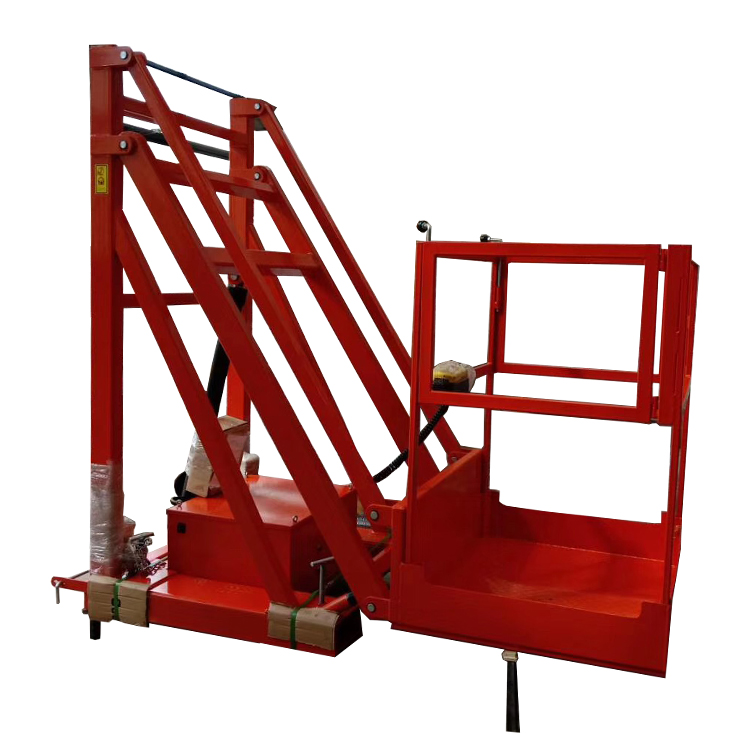

Name:NK28A Forklift Maintenance Platform
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. The Forklift Work Platform can easily work with forklift.
2. Top grade hydraulic pump station provides a smooth lifting.
3. With VARTA maintenance-free battery, and also can connect forklift DC 12V power supply, optional AC 220V voltage.
4. High quality hydraulic oil cylinder is equipped with explosion-proof valve can prevent the rapid fall when blowout.
5. The Forklift Work Platform Total height can reach up to 5200mm height after lifting the fork of forklift.
Specifications:
Model Forklift Work Platform NK28A
Capacity kg 280
Lifting height mm 3200
Platform size mm 1000*800
Motor / 12V 1200W
Battery V/Ah 12/120
Net weight kg 426
Overall size mm 2140*1000*2000
Previous:NK25E Forklift Manned PlatformsNext:NK28B Forklift Access and Maninenance PlatformReturn
