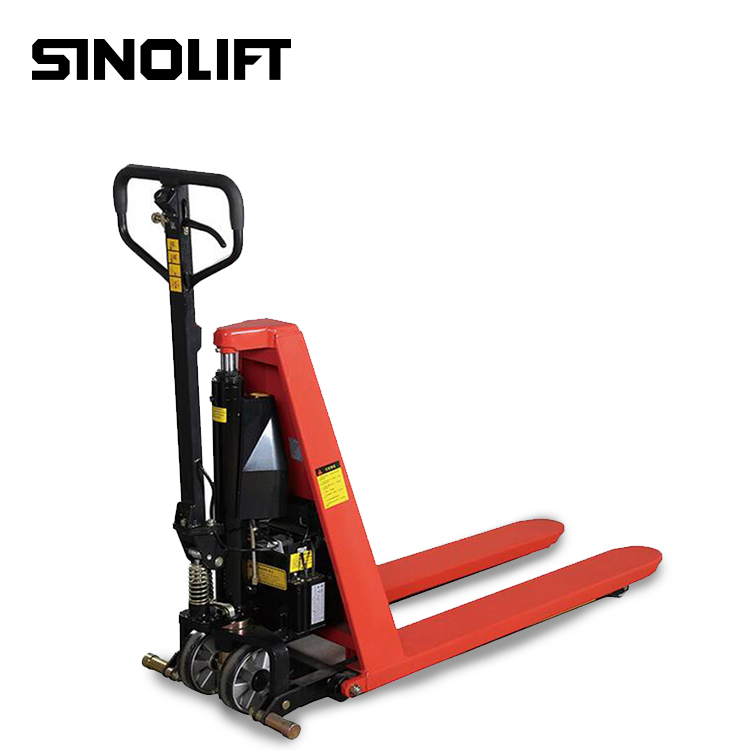

Name:NPHE Electric Scissors Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

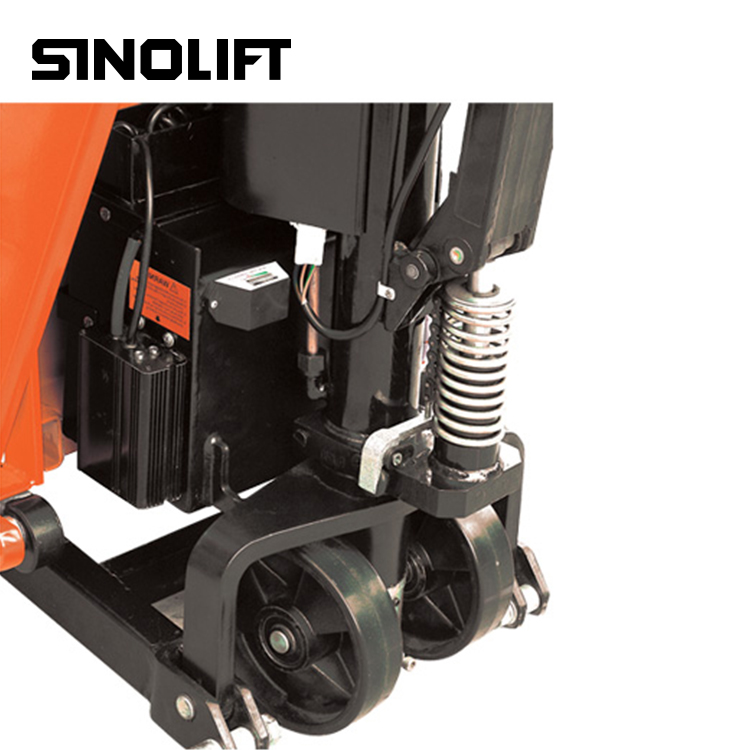

Powered by 12 voltage battery, Driven by American "Monarch" pump station or French "HPI" Pump station.
Used as both a work table and pallet truck.
10-12 seconds pumping from the bottom to the top.
Safety overload system prevents the truck from being used beyond its rated capacity.
The Handle can be restored to its upright position automatically once you let it free.
Lifting motor power is: 1.1kw.
Easy placing of load to correct ergonomic work height.
Specifications:


Model NPHE1000 NPHE1500
Capacity 1000KG 1500KG
Lowest Fork Height 85MM 85MM
Max. Fork Height 800MM 800MM
Fork Length X Fork Width 1140X520 or 1140X680MM 1100X520 or 1100X680MM
Diameter of front wheel Ø75X50MM Ø75X50MM
Diameter of Rear Wheel Ø150X50MM Ø150X50MM
Lifting time in Full Range(s) 1012 18
Size of Fork 162X50MM 162X50MM
Descending Speed <0.1M/S <0.1M/S
Motor Working Voltage 12V 12V
Battery Volgage 12V 12V
Electricity Volume 63A/h 63A/h
Working pressure of Pump Station 15Mpa 21Mpa
Imput/output Voltage of Charger 200-240/12V 115-230/12V
Service Weight 118 / 128KG 145 / 155KG
Max. Charging Current of Charger 10A 10A
Price (FOB Shanghai) US$1,340 US$1,380
