Products – Pallet Truck

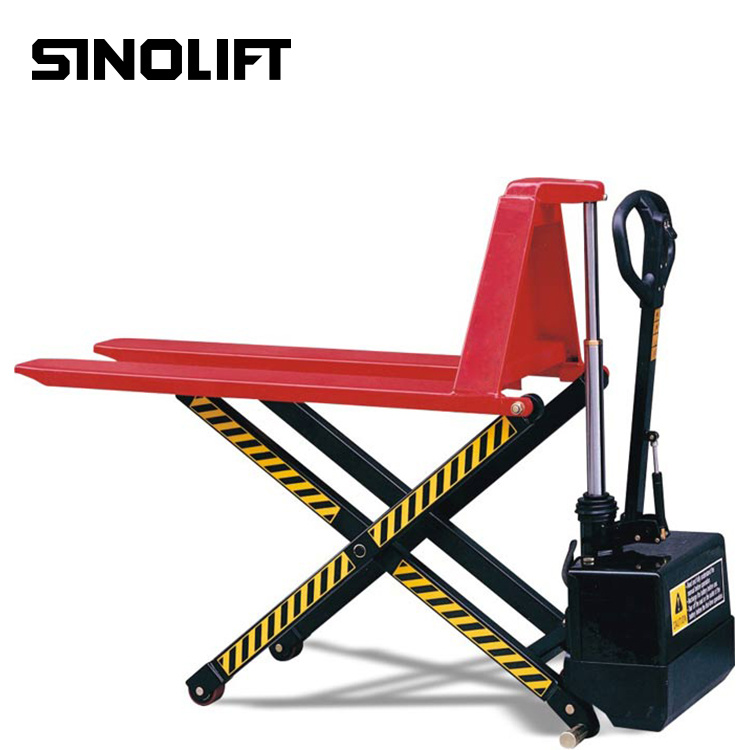

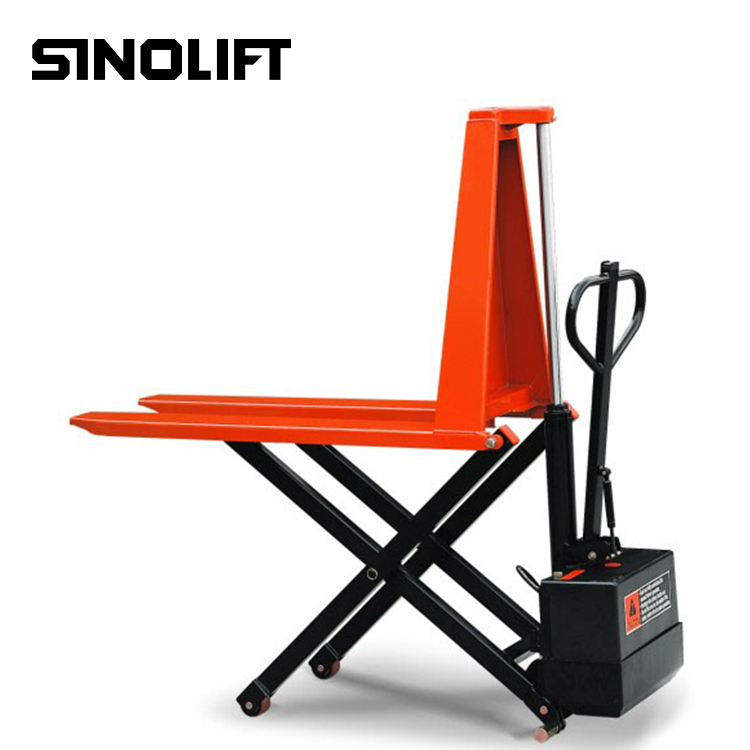

Name：NPHD Electric Scissors Pallet Truck
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
1.Powered by 12 voltage battery, driven by a good effective pump station.
2.Used as both a work table and pallet truck.
3.10-12 seconds pumping from the bottom to the top.
4.Safety overload system prevents the truck from being used beyond its rated capacity.
5.The handle automatically returns to its upright position when released.
6.Lifting motor power is 1.1kw.
7.Conforms to EN1757-4.
Economic version but reliable.
High quality power unit made in USA.
Top quality power unit made in Europe.
Safety: Patented safety system on handle to prevent accidental tough of the release handle thus causing suddent sllding down of the fork, you can screw the release handle tight in slow or quick lifting position.
Conforms to EN1757-4.
Specifications：
Model NPHD1000 NPHD1500
Capacity kg 1000 1500
Min. Fork Height mm 85 85
Max. Fork Height mm 800 800
Fork Length X Fork Width mm 1140X520 or 1140X680 1100X520 or 1100X680
Front wheel mm Ø75X50 Ø75X50
Rear Wheel mm Ø150X50 Ø150X50
Lifting time in Full Range S 10/12 18
Size of Fork mm 162X50 162X50
Descending Speed m/s <0.1 <0.1
Motor Working Voltage V 12 12
Battery V/Ah 12/63 12/63
Working pressure of Pump Station Mpa 15 21
Charger V/A 12/10 12/10
Service Weight kg 118 / 128 145 / 155
Pcs/20" Container pcs 108 84
