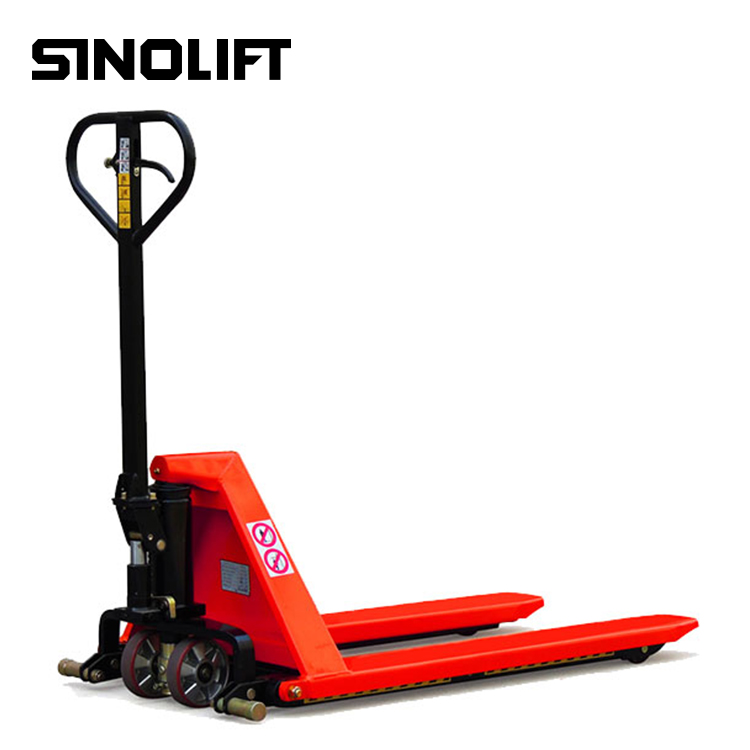

Name：HLT Hand Scissors Pallet Truck
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
HLT Series Hydraulic High Lift Pallet Truck 0Purpose: Mainly used to carry various types of machinery or other heavy objects. It can be used with jacks, hand-cranked tops and other lifting tools to reduce labor intensity and improve efficiency. It is a good helper for cargo handling in workshops, warehouses, roads and other places .
●Features: small volume hydraulic device, simple operation and convenient use. The handle design conforms to ergonomic principles and has three major functions: lifting, carrying, and lowering. Integral casting cylinder, beautiful appearance, sturdy and durable, made of high-quality steel plate, chrome-plated piston rod, internal overflow valve to provide overload protection, lowering speed control, valve core adopts integral parts, reducing maintenance costs.
●The high-lift truck can be raised to 800mm above the ground and stopped at any height. It can be used as a fixed operating platform. When it is lowered to the lowest, it can also be used as a truck.
Specifications：
Model HLT1000 HLT1500 HLT1000A HLT1500A
Min. Height kg 1000 1500 1000 1500
Tiller Steel Steel Robber Coated Robber Coated
Quick Lift Manual Transfer Manual Transfer Automatic Transfer Automatic Transfer
Min.Fork Height mm 85 85 85 85
Max.Fork Height mm 800 800 800 800
Size of Fork mm 162×50 162×50 162×50 162×50
Length of Fork L mm 1140 1100 1140 1100
Width over Fork mm 520/680 520/680 520/680 520/680
Net Weight kg 105/112 118/125 105/112 118/125
Fork Rollers mm Φ75×50 Φ75×50 Φ75×50 Φ75×50
Steering Wheel(PU or Nylong) mm Φ150×50 Φ150×50 Φ150×50 Φ150×50
Steering Wheel (Rubber) mm Φ180×50 Φ150×50 Φ180×50 Φ150×50
Pallet Packing Size(520mm)4pcs/Pallet mm 1930×580×720 1930×580×720 1930×580×720 1930×580×720
Pallet Packing Size(680mm)4pcs/Pallet mm 1930×740×720 1930×740×720 1930×740×720 1930×740×720
Pcs/20" container 120/96 120/96 120/96 120/96
