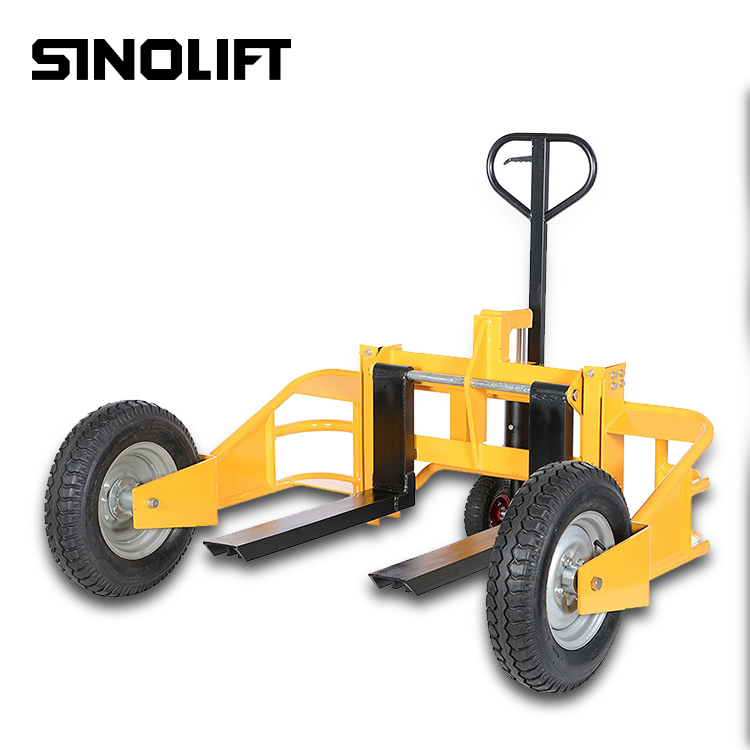

Name：RPA All Rough Terrain Pallet Truck
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
Great equipmet to move heavy loads up till 1250kg.
- Ergonomic design of the frame to reduce the operation effort.
- Meanwhile the truck is robust enough for the purpose to work outside such as builders yard, garden centers where there's only an occasional need for moving pallets by forklifts or where no ordinary forklift or even pallet truck can go.The fork is adjustable for special dimension pallet.
Specifications：
Model RP1000 A RP1250 A
Rated Capacity lbs 2200 2750
Max.Fork Height inch 9.4'' 9.4''
Min.Fork Heitht inch 2.8'' 2.8''
Fork Length inch 32'' 34''
Load Center inch 15.7'' 16.9''
Adjustable Fork Width inch 8.5''-26.7'' 9.8''-26.7''
Individual Fork Width inch 3.9'' 4.7''
Distance inside the front wheel inch 48.4'' 48.4''
Axle Distance between front wheel inch 38.3'' 38.3''
Front Wheel Dia.x Width in Φ 22.3''*5.7'' Φ 22.3''*5.7''
Rear Steering Wheel Dia.x Width in Φ9.8'' Φ9.8''
Turn radius Wa in 59'' 59''
Overall Size LxWxH in 55.3''*65.7''*50.3'' 55.3''*65.7''*50.3''
Net Weight lbs 463 525
