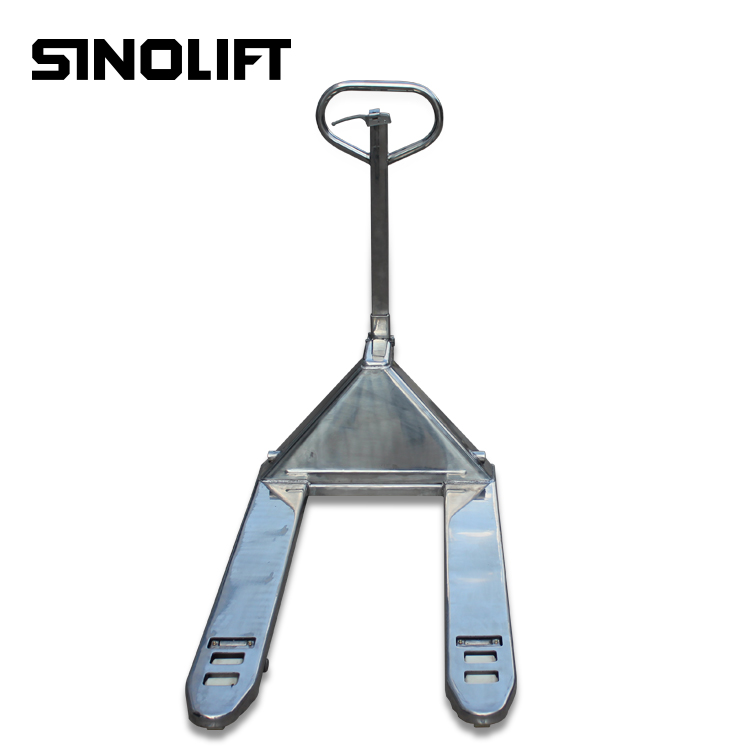

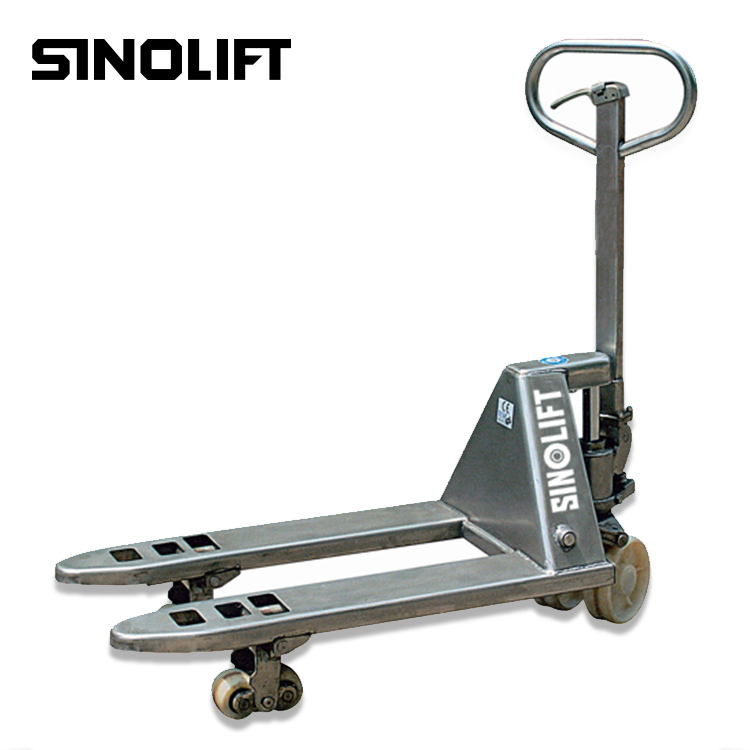

Name:NPS Stainles Hand Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
This stainless steel pallet truck is designed for use in environments such as clean rooms, laboratories, wash down and corrosive applications. This 100% stainless steel truck is ideal in industries such as food, fish, slaughter houses, salt water and chemical.

The entire frame and pump is manufactured from 304 stainless. Nylon wheels are standard to withstand water exposure. Wheel bearings are double shielded for protection.

Capacity is 4500 lbs. Fork width is 6.25”. Steer wheels are 7” in diameter and load wheels are 2.75” in diameter. Lowered height is 3”. Entry and exit rollers standard.
Specifications:
Model   NPS25-510(511) NPS25-712 NPS30-510(511) NPS30-712
Type   SS304 stainless SS304 stainless SS304 stainless SS304 stainless
Capacity Q kg 2500 2500 3000 3000
Width overall forks W1 mm 520 685 520 685
Fork Length L1 mm 1070(1150) 1220 1070(1150) 1220
overall Length L2 mm 1430 1590 1430 1590
Overall Height H mm 1190 1190 1190 1190
Min. Fork Height H2 mm 80 80 80 80
Fork lifting Height H1 mm 200 200 200 200
Fork Length W2 mm 150 150 150 150
Fork Inner Width mm 220 385 220 385
Steering Wheel A mm Ø180X65 white Nylon Wheel
Load roller Tandem B mm Ø78X70 white Nylon Wheel
Load roller Single B mm
Net Weight kg 75(76) 79 78(79) 82
