Name:NF Hand Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
 Hand Pallet Truck
 Electric Pallet Truck
 Electric Stacker
 Reach Truck
 Counter-balanced Eletric Forklift
 Electric Tow Tractor
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

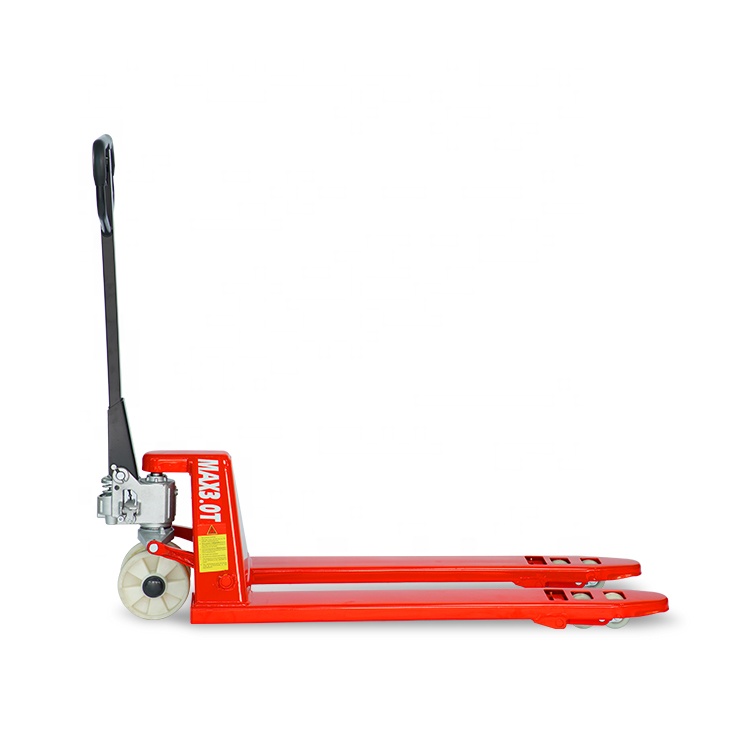

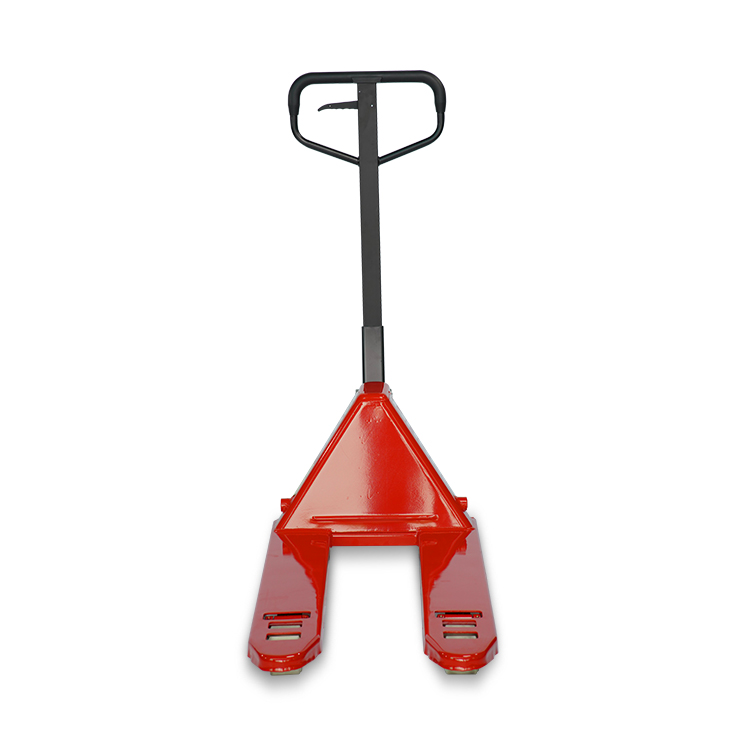

NF Hand Pallet Truck

1. Simple and Easy Operation.

2. Lifting movement via collapsible foot pedal or 3 function handle control.
3. Sensitive lowering through sinking valve.
4. Hand push drive.
5. Overload protection via pressure valve.
6. Safe Operation and secure Working Conditions.
7. Stable chassis with 2 or 4 frame rollers and 2 steering rollers.
8. Long Service Lift.
9. Robust construction.
10. Hard chromium plated frame.
11. Hardened chromium plated ram.
12. Effortless Movement.
13. Ball bearing non-marring rollers.
14. Polyurethane rollers.
15. Tapered forks.
Specifications:
Model

Rated

Capacity

Fork Width Fork Length

Min. Fork

Height

Max.Fork

Height

Wheel Service Weight
Q W L H1 H2

Steering

Wheel A

Single Load Wheel B

Tandem Load Wheel B
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
NF25-510 2500 520 1070 80 200 Ø180×50 Ø78×100 Ø78×70 62
NF25-712 685 1220 70
NF30-510 3000 520 1070 80 200 Ø180×50 Ø78×100 Ø78×70 70
NF30-712 685 1220 75
Low Profile
Model

Rated

Capacity

Fork Width Fork Length

Min. Fork

Height

Max.Fork

Height

Wheel Service Weight
Q W L H1 H2

Steering

Wheel A

Single Load Wheel B Tandem Load Wheel B
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
NFL25-510 2500 520 1080 65 160 Ø180X62 Ø65X100 Ø65X70 62
NFL25-712 685 1230 70
