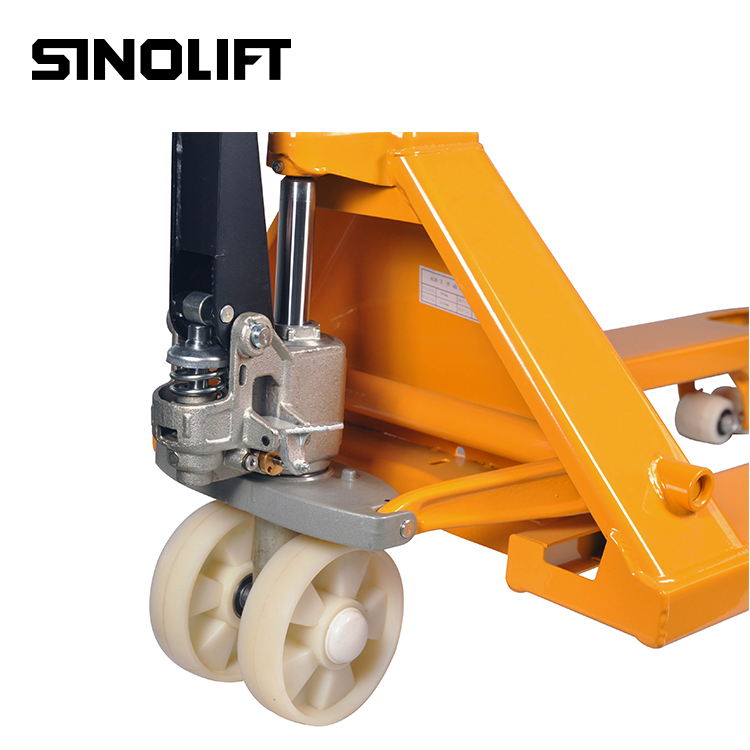

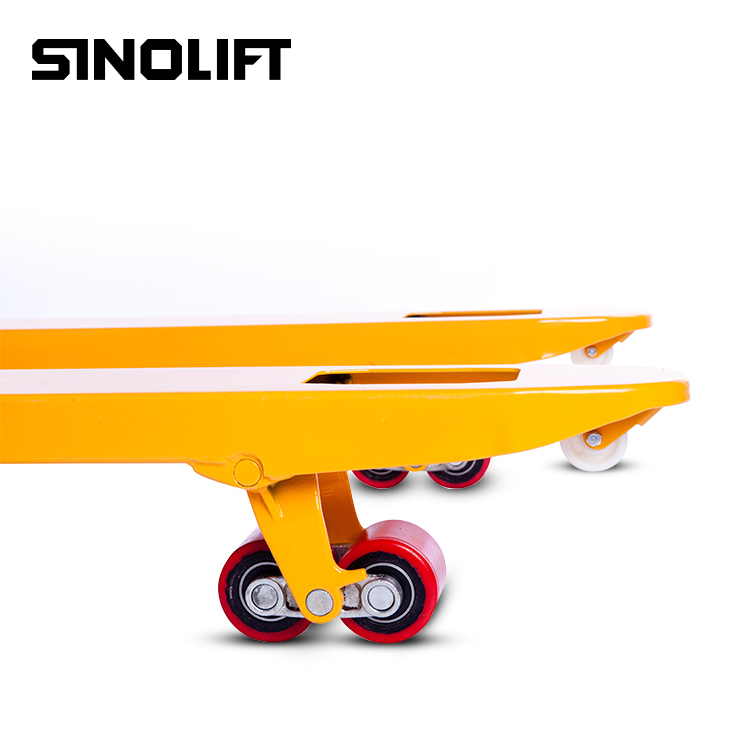

Name:BF Hand Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Patterned aluminum platform.

2.Frame made of aluminum alloy.
3.Four edges to be Anti-collision design.
4.Handle tube bases are installed on both sides, handle can be installed any side or both sides.
5.Two universal steering wheels and two fixed wheels are equipped to ensure smooth moving.
6.Widely applied in supermarket, meat industry and other food industry.

Specifications:
Model BF20 BF25 BF30
Capacity kg 2000 2500 3000
Lowered height mm 85/75 85/75 85/75
Lifting height mm 110 110 110
Total lift height mm 195/185 195/185 195/185
Fork length mm 1150/1220 1150/1220 1150/1220
Width over forks mm 550/685 550/685 550/685
Self weight kg 73-92 73-92 73-92
Qty/20" FCL pcs 180/144 180/144 180/144
