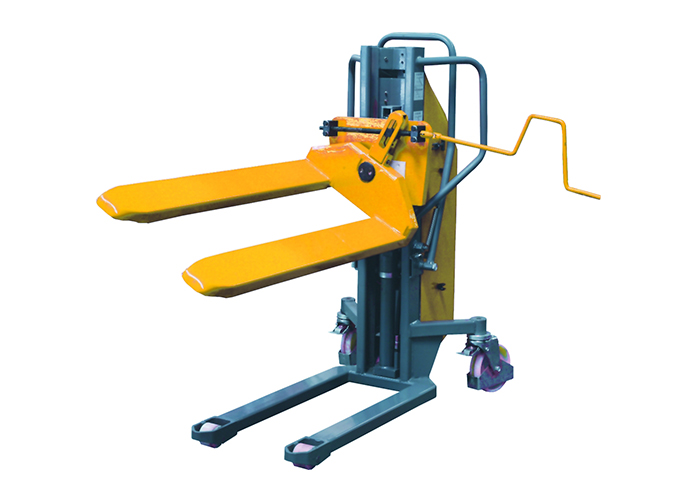

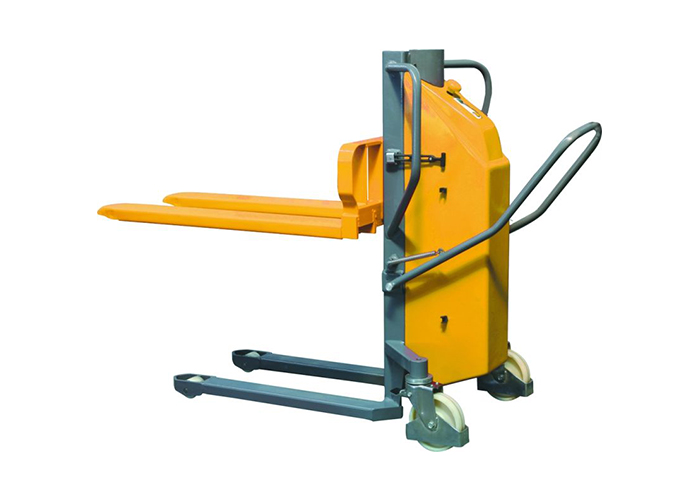

Name:ELT0809 Electric Pallet Tilting Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
 Pallet Tilting Postioner
 Pallet Tilting Stacker
 Electric Pallet Inverter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. With handle return gas spring, brake, protection wheel cap, protection net.
2. Compact vehicle design provides exceptional maneuverability in tight areas.
3. Adjustable bended and forged fork.
4. Lifting supporting leg keeps stacker steady when lifting or lowering.

What kind of smart design can be made in simple products, semi electric stacker and manual stacker.
1. Smart mast roller, adjusting eccentric bearing ensure mast verticality, keep mast veridicality from
89.3-89.7 degeree.
2. Smart supporting leg, steel tube is inside of leg square steel, ensure strength of supporting leg.
3. Smart design to reduce the noisy when unloading running by a special screw with spring and tip.
4. Stronger backrest, full welding from front to back of backrest, ensure the strength.

Specifications:
Model ESU0809 ELT0809
with tilting device
Capacity kg 800
Length mm 1690
Width mm 730
Height mm 1420
Length of the forks mm 1140
Width of the fork mm 150
Min.height over the floor mm 87
Forks width mm 540
Spacing between the forks mm 240
Lifting height mm 900
Bearing surface of the forks mm 1140x540
Forks tilting angle . 20
Lifting speed without load mm ≥0.07
Lifting speed with load mm ≥0.05
Lowering speed with a load controllable
Clearance above floor mm 30
Battery 2x12V/60Ah
Power Pack Unit 12V/700W
Net Weight kg 271
