Products – Pallet Tilter

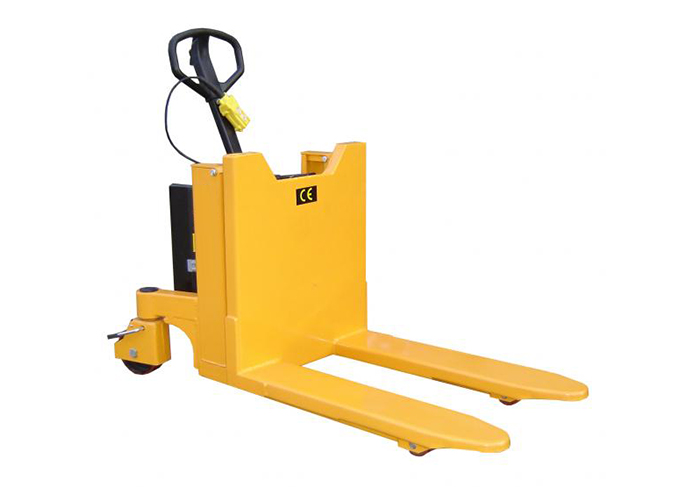

Name:LT10E Pallet Tilting Work Postioner
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
 Pallet Tilting Postioner
 Pallet Tilting Stacker
 Electric Pallet Inverter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Manual and Electric Version
▲ Designed to give the user an ergonomically correct position to reach
loads easily without the necessity of bending down or stretching up.
▲ Handle can be turned and locked in position away from the work area.
▲ Applies to both sitting and standing positions.

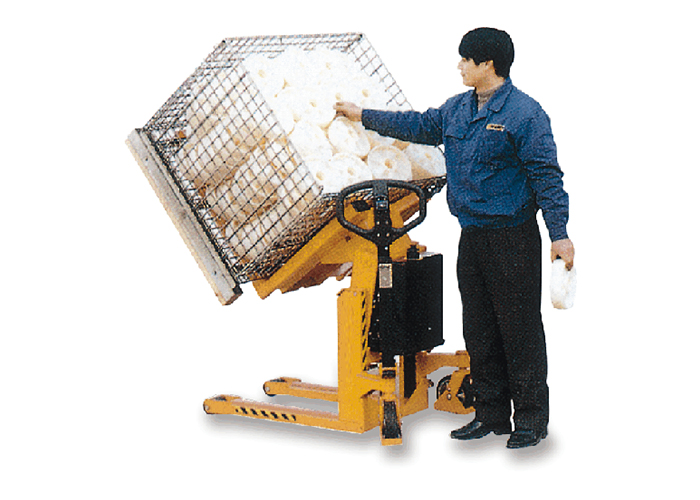

▲ Forks can be tilted up to 90°.
▲ Both are supplied as standard with parking brake and foot protectors.
▲ Conforms to EN1757-1 and EN1175.
Specifications:


Model LT10E
Type Electric
Capacity (kg) 1000
Lifting Height, Vertical h (mm) 285
Min.Fork Height h1 (mm) 85
Fork Length l (mm) 800
Handle Height L1 (mm) 1138
Overall Fork Width b (mm) 560
Width Between Forks b1 (mm) 234
Fork Tip Length From Roller L2 (mm) 135
Overall Width B (mm) 638
Overall Length L (mm) 1410
Overall Height, Raised H (mm) 950
Overall Height, Lowered H (mm) 750
Load Centre Min./Max. C1 (mm) 200/400
Load Centre Min./Max. C2 (mm) 200/420
Power Unit (KW/V) 0.8/12
Net Weight (kg) 185
