Products – Pallet Tilter

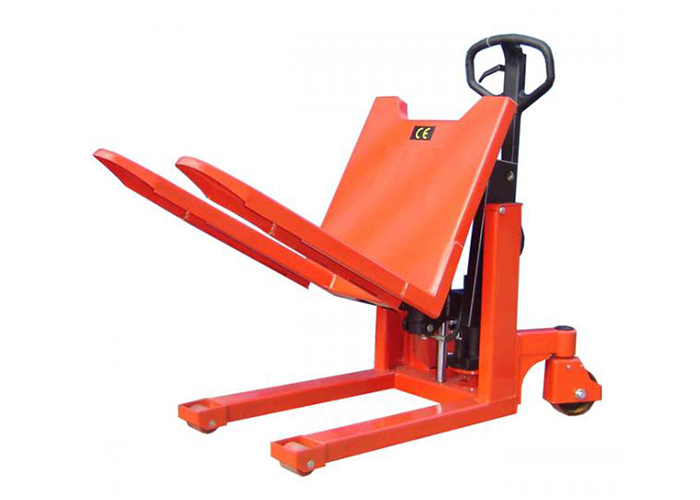

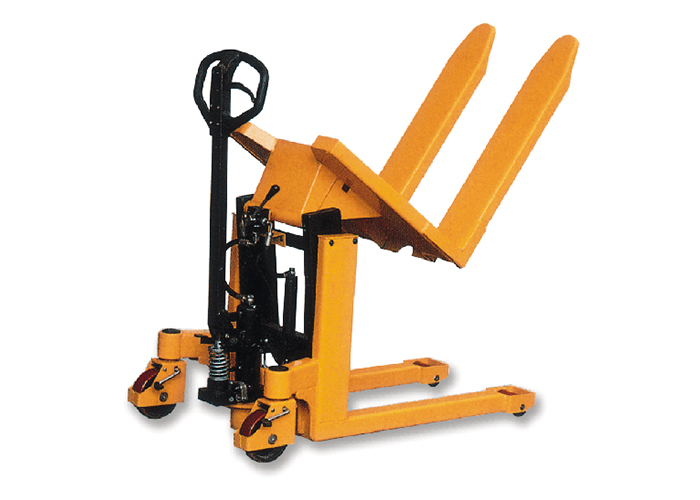

Name：LT10M Pallet Tilting Work Postioner
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
 Pallet Tilting Postioner
 Pallet Tilting Stacker
 Electric Pallet Inverter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
The Hand Stacker is ideal for lifting pallets and cages to a comfortable working height.
Capacity of 800kg lifting to a height of 0.9 metres.
The tilt facility is ideal for operators emptying cages of products onto production lines etc, a 400kg load can be
tilted to 40° and a 600kg load at 20°. Fitted with Nylon wheels as standard.
Heavy-duty powder coated frame for durability Fork size of 540mm wide over the forks by
1140mm long. Forks size is 150mm wide x 50mm deep.
Specifications：
Model HS 0809/HS-T0809
Capacity kg 800
Length mm 1630
Width mm 730
Height mm 1230
Length of the forks mm 1140
Width of the fork mm 150
Min. height of the forks above the floor 87
forks width mm 540
Truck weight kg 218
Lifting height mm 900
Bearing surface of the forks mm 1140x540
Tilting angle of the forks ° 20°- 600kg / 40°- 400kg
Previous：NO ProductsNext：LT10E Pallet Tilting Work PostionerReturn
