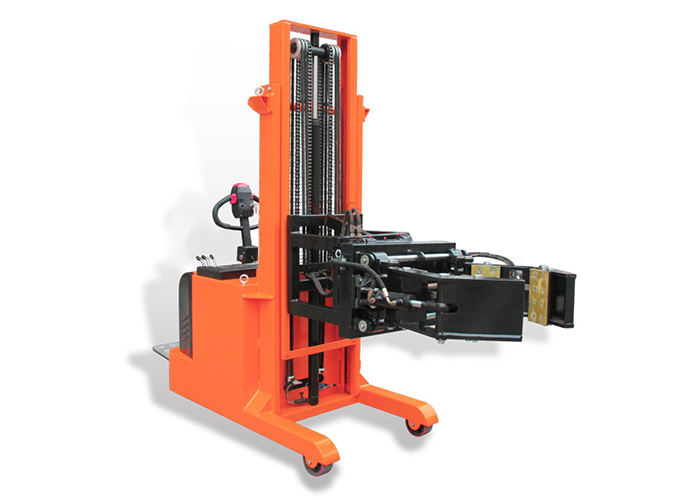

Name:YL800 Transverse Clamp Gripper Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
 Drum Tipping Stacker
 Full Electric Drum Adopter
 High Postion Drum Rotating Crane
 Drum Handler
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

YL800 Transverse Clamp Gripper Handling Trolley with adjustable clamping arm


▲Machine design based on man-machine engineering-oriented thinking, integration of international advanced design concepts and technology, has a good safety, operability and comfort.

▲Adjustable clamping arm is suitable for φ230-830mm diameter drums.

▲Drums can be rotated 360 degrees in two-way continuous.

▲Keep labor saving & high efficiency, Manned pedal can be operated by one people. Power drive, transport, lift and tilt 55 gallon steel & stainless drums.

▲Attention: This model with step-less speed regulator, high-power reversing switch, integrated hydraulic pump stations, AC power walking driving wheel.

Specifications:
Model YL800
Drive type / Full Electric
Operating type / Standing operation
Rated load capacity Kg 800
Turning Radio mm 1500
Max.Grade ability
(Fully-load/no-loaded)
% 3/5
Driving wheel size mm Ф250*80
Wheel / Polyurethane
Controlling type / Electromagnetic braking
Steering type / EPS(Electric Power Steering)
Drive motor power kw 1.2
Lifting motor power kw 2.2
Noise level db(A) <70
Battery
voltage/capacity
V/A 24/210
Charger V/Ah 24/30
Net Weight kg 1190
Rotating range ° 360
