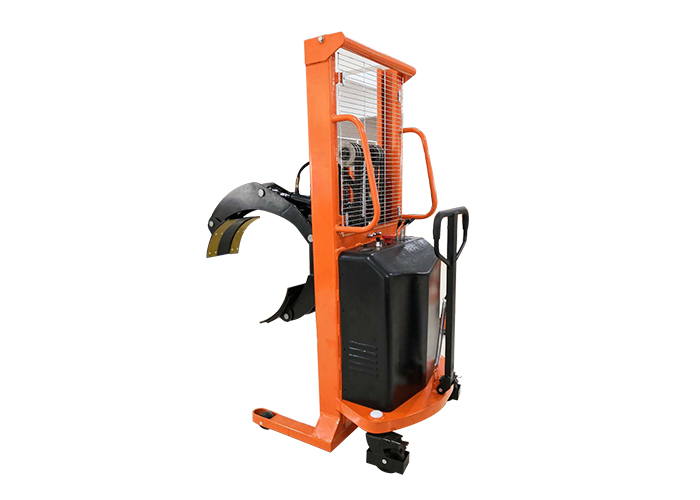

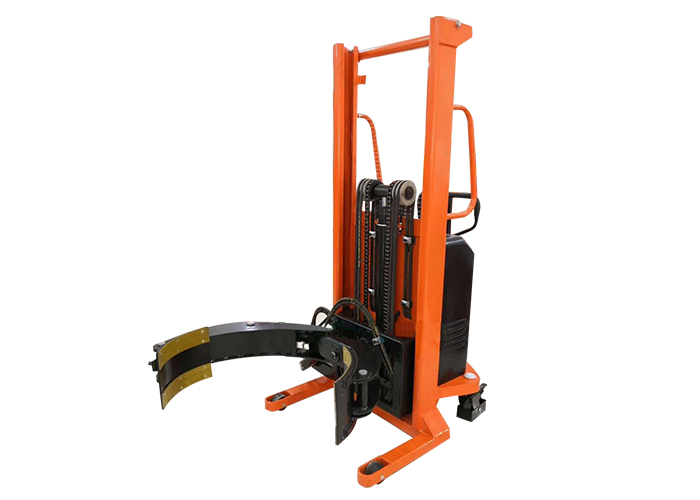

Name:ZJ100 Transverse Clamp Gripper Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

ZJ100 Transverse Clamp Gripper Handling Trolley with high-strength wear-resistant cylinder system



▲The C'' frame structure made by special rolling process combines with the joint venture hydraulic pump station and brand battery, which is efficient, solid and safe.

▲Lightweight and convenient to grab the roll from the ground, the round material is transported and raised by 90° to achieve easy loading.

▲High-strength wear-resistant cylinder system, each unit device adopts domestic and international famous brands to achieve hydraulic clamping and lifting.

▲Hydraulic rotation, manual moving.

▲Apply to the printing industry, the roll film industry and achieve transporting, loading and unloading round materials.

Specifications:



Model   ZJ100
Front wheel size mm φ80×55
Rear wheel size mm φ150×50
Diameter of roll mm φ600-φ800
Power of pump station kw/h 1.6
Battery AH/V 120/12
Net weight kg 355
