Products – Roll Handling Trolley

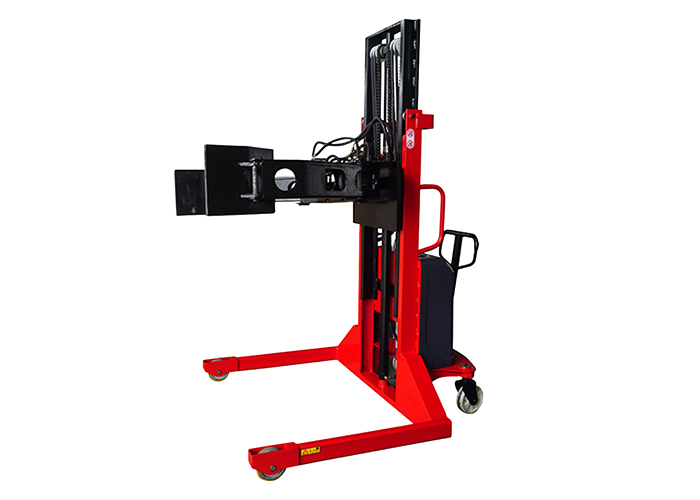

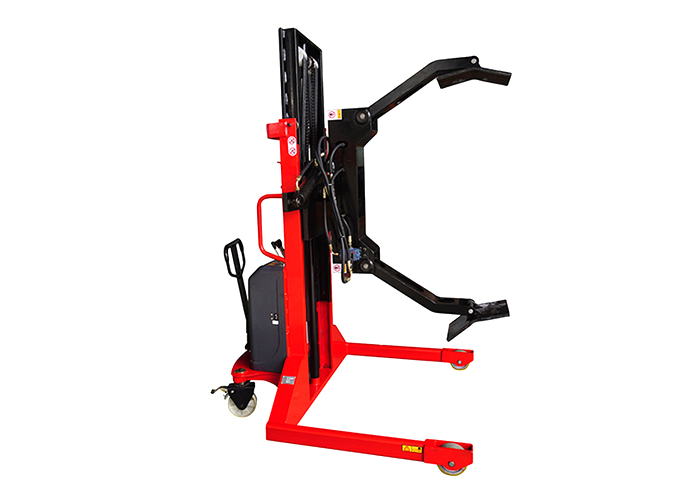

Name:CTD Transvers Clamp Gripper Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

CTD Transvers Clamp Gripper Handling Trolley with the chain bearing performance good


Use formed C steel mast, high bending strength.
Wearing-resistant nylon wheel with brake, ensure no sliding after stop the machine.
Wide view mast equipped with security fence, protect the operator’s hands won't get squeezed.
Widely used in paper fabrication ,packaging, printing and textiles industry etc..
Lifting motor Strong, small size, low noise.
The chain bearing performance good.

Specifications:
Model   CTD0216-500Z CTD0525-500Z CTD0516-1000Z CTD0525-1000Z
Capacity kg 200 500 500 500
Max.Lifting height mm 1600 2500 1600 2500
Min. Clamp Height mm 520 520 520 520
Clamp width mm 635-950 635-950 1135-1450 1135-1450
Clamp Overall Length mm 820 820 1220 1220
Paper Roll Diameter mm ¢200-500mm ¢200-500mm ¢300-1000mm ¢300-1000mm
Load Cente mm 350 350 700 700
Self Weight kg 498 550 560 640
Overall Size mm 1700*950*2000 1700*950*1780 1900*1500*2000 1900*1500*1780
Asle Width mm 1900 1900 2100 2100
Rear Wheels   2*¢80*70
Front Wheels   2*¢150*50
Battery V/Ah 12/120
Charger V/A 12/15
Lifting Motor Kw 1.6
