Products – Roll Handling Trolley

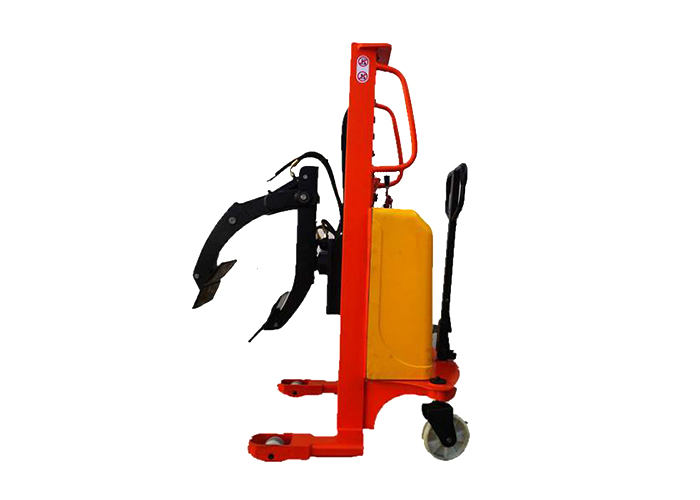

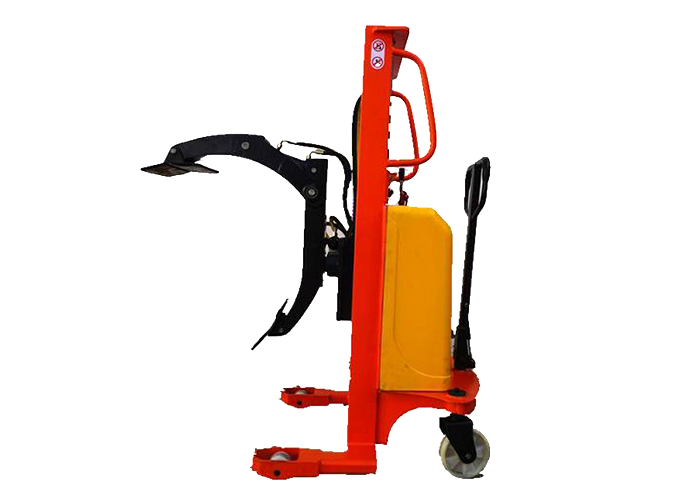

Name:CTS Transverse Clamp Gripper Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

CTS Transverse Clamp Gripper Handling Trolley with wearing-resistant nylon wheel with brake



Unique design of the clamp arm forearm movement, the big arm not wrapped around paper gradually tightening, pick up the paper, can return 360°.
Wearing-resistant nylon wheel with brake, ensure no sliding after stop the machine.
Wide view mast equipped with security fence, protect the operator’s hands won't get squeezed.

Widely used in paper fabrication, packaging, printing and textiles industry etc.
Lifting motor Strong, small size, low noise.
The chain bearing performance good.

Specifications:
Model   CTS0216-500Z-B CTS0525-500Z-B CTS0516-1000Z-B CTS0530-1000Z-B
Capacity kg 200 500 500 1000
Lift max.height mm 1600 2500 1600 3000
Min.clamp height   520 520 520 520
Clamp width mm 635-950 635-950 1135-1450 1135-1450
Clamp length mm 820 820 1220 1220
Paper roll diameter mm Φ200-500 Φ200-500 Φ600-1000 Φ600-1000
Load center mm 350 350 700 700
Weight kg 498 550 560 640
Over size mm 1700*950*2000 1700*950*1780 1900*1500*2000 1900*1500*1780
Channel request mm 1900Turn 1900Turn 2100Turn 2100Turn
Forward and Back request mm 1000 1000 1600 1600
Real wheels mm 2*Φ80*70
Front wheels mm 2*Φ150*50
Battery V/Ah 12/120
Charger V/A 12/15
