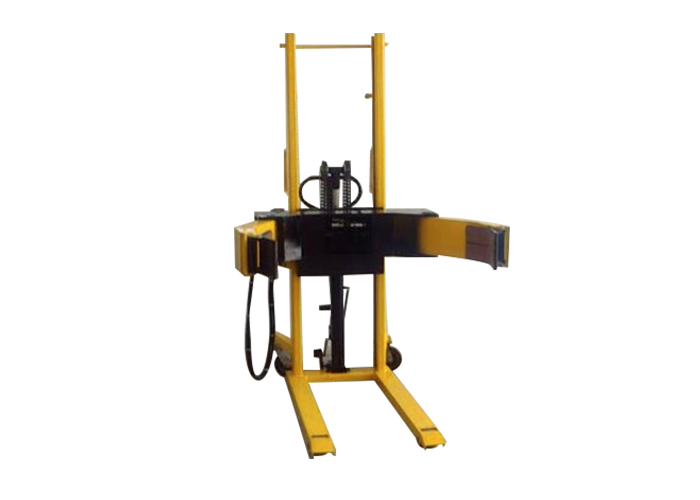

Name:CTY Vertical Clamp Gripper Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

CTY Vertical Clamp Gripper Handling Trolley with dual pump for easier lifting



Controllable direction handle.

Has a dual pump for easier lifting.

Unique technology quick valve built in.

▲Top quality hydraulic pump & cylinder.

▲Protection device for steering wheel & safety guard for load roller.

▲Conforms to EN1757-1:2001.

Specifications:
Model   CTY0210-500 FTD0416-500 CTY0216-500 FTD0416-1000
Capacity kg 200 400 200 400
Liftmax.height mm 1000 1600 1600 1600
Clamp width mm 700-790 635-950 635-950 1135-1450
Min.clamp height mm 300 490 490 520
Clamplength mm 820 820 820 1220
Paper roll diamete mm Ø300-390mm Ø200-500mm Ø200-500mm Ø300-1000mm
Load center mm 200 350 350 700
Weight kg 300 366 348 395
Over size mm 1500*1060*1400 1500*950*2000 1500*950*2000 1900*1450*2000
Channel request mm 1600 1600 1600 2000
Forward and Back mm 1100 1000 1000 1500
Real wheels mm 2*Ø180*50
Front wheels mm 2*Ø80*70
