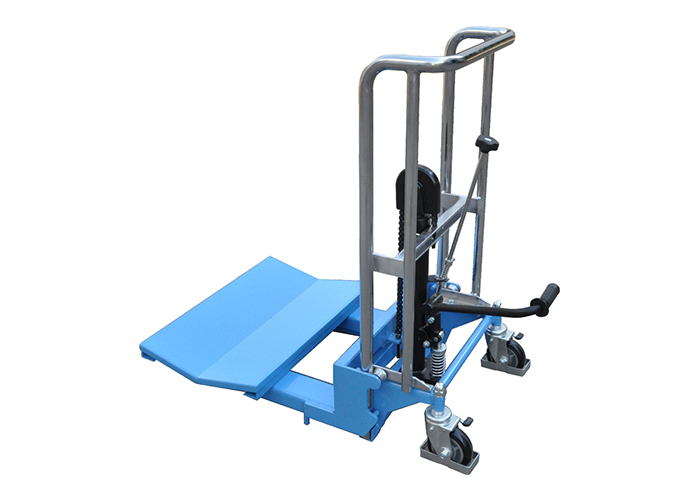

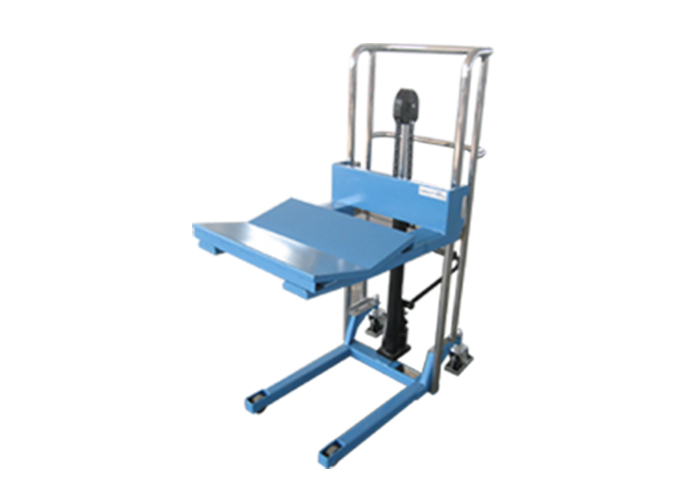

Name：PF-V V-shape Plate Handling Trolley
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

PFV V-shape Plate Handling Trolley Widely used with low leg and various accessories as option



▲Robust construction.
▲Hard chromium plated frame.
▲Effortless Movement.
▲Polyurethane rollers with bearing
▲No-marking castor as standard.
▲Widely used with low leg and various accessories as option.
▲The V-Shaped plate is suitable for printing work, flexible package industry.
▲Conforms to EN 1757-1.

Specifications：
Model (Fixed Fork)   PF2085V PF2120V PF4085V PF4120V PF4150V PF4180V
Capacity (kg) 200 400
Max.Fork Height (mm) 850 1200 850 1200 1500 1800
Min.Fork Height (mm) 85 85
Fork Size LxW (mm) 600x100 650x100
Fixed Fork Width PF (mm) 500 550
Load Roller (mm) Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125
Pump strokes to Max.Height   19 26 35 50 63 76
Battery (Ah/V) Dec-60 Dec-70
Overall Height (mm) 1080 1435 1060 1410 1710 1710
Overall Width (mm) 560 590
Overall Length PF/PJ(mm) 1020 1100
Net Weight PF (kg) 55 62 70 76 82 82
Option Platform   LP10 LP20
