Feature:

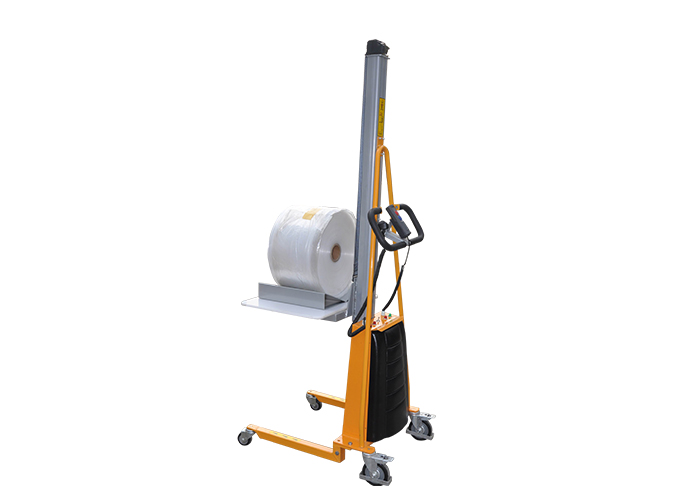

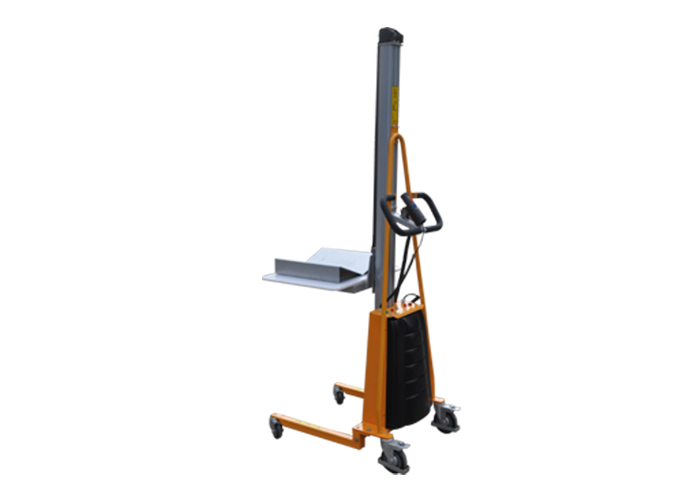

E100V V-shape Plate Handling Trolley with stronger motor


▲ Stronger motor, Larger battery 12Ah, Low voltage protection.
A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.

Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc.

Various special design and optional accessories can be widely used.

▲ Electric models: Automatic electronic overload protection system ensures safety.
Maintenance free and sealed batteries, automatic charger.

▲ Quick change attachment options available.

▲ Conforms to EN1757, CE marked.

Specifications:
Model E100 E100V
Type Electric
Capacity (kg) 80 100
Load centre (mm) 235 235
Min.Height (mm) 1500 1700
Max.Height (mm) 130 130
Platform size (mm) 470X600 470X600
Overall size mm 870X600 870X600
X1990 X1990
Load wheel (mm) Φ75 Φ75
Steering wheel (mm) Φ125 Φ125
Battery service free 24v,12Ah 24v,12Ah
Net Weight (kg) 66 66
