Products – Roll Handling Trolley

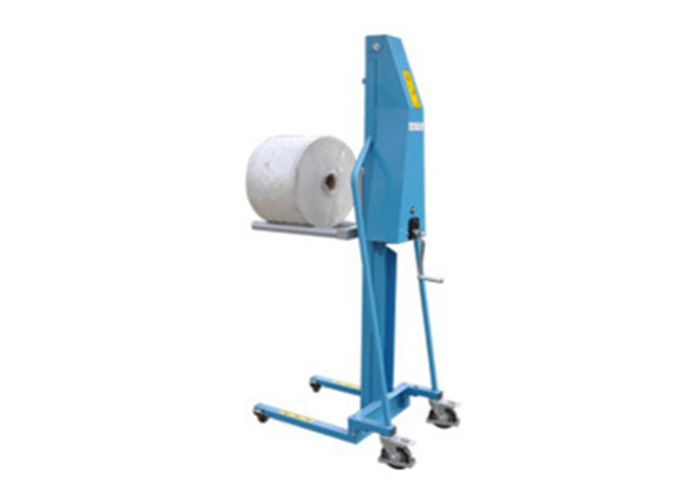

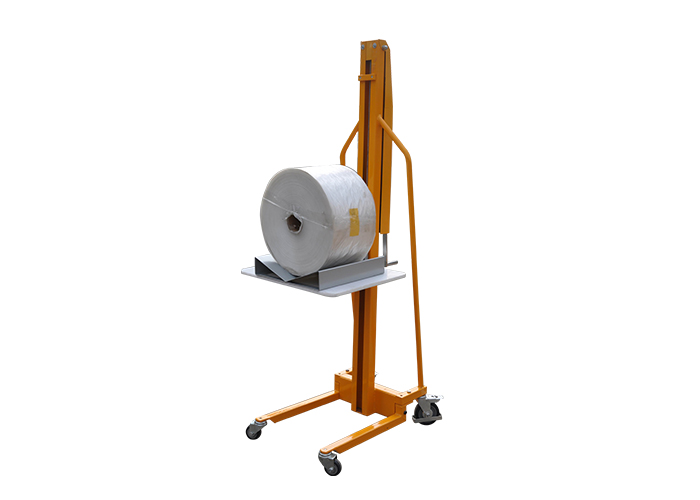

Name：M200V V-shape Plate Handling Trolley
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
M200V V-shape Plate Handling Trolley which is ideal for use in narrow aisles and confined spaces

A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc..
▲ Manual models: Operated via a manual hand winch.
Auto brake system prevents uncontrolled lowering.
▲ Quick change attachment options available.
▲ Conforms to EN1757, CE marked.
Specifications：
Model   M200 M200L
Capacity (kg) 200 200
Load Center (mm) 230 230
Max. Platform Height (mm) 1500 1500
Min. Platform Height (mm) 130 (PE) / 85 Steel
Min. Fork Height (mm) 30~80 30~80
Support Leg Height (mm) 110 80
Support Leg Inner Width   370(370~600)
Platform Size (mm) 470×600 (PE or Steel)
Overall Dimensions (mm) 870×600×1920 870×600×1920
Load Wheel (mm) ø75 Universal ø75 Fixed
Steeing Wheel (mm) ø125 (PU) ø125 (PU)
Net Weight (kg) 62 64
Previous：PFZ-G Roll Conveyor Handling TrolleyNext：E100V V-shape Plate Handling TrolleyReturn
