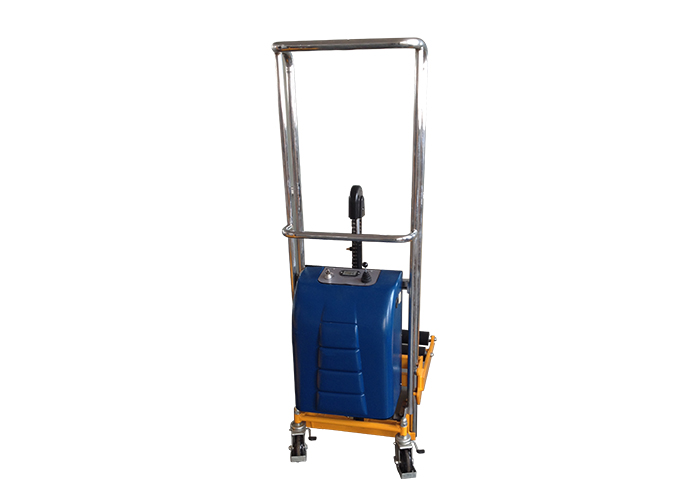

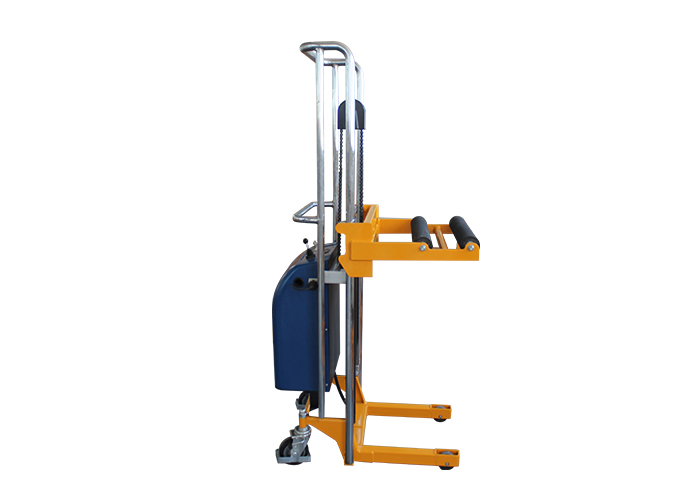

Name:PFG-E Electric Roller Conveyor Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
 Roll Handling Pallet Truck
 Triangular Forks Stacker
 Shaft Rod Handling Trolley
 V-shape Plate Handling Trolley
 Arc Panel Roll Handling Trolley
 The roller conveyor Handling Trolley
 Clamp Gripper Handling Trolley
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

PFG-E Electric Roller Conveyor Handling Trolley

Special design combines lifting, transporting and stacking cylindrical reels.
Equipped with a overload protection valve.
Hard chromium plated frame.
▲Widely used with low platform and various accessories as option.
▲Design of double chain and big wheels can be stable and reliable.
▲Conforms to EN 1757-1.

Specifications:


Model Fixed front Wheel PFG4085E PFG4120E PFG4150E
Universal Front Wheel PFG4085WE PFG4120WE PFG4150WE
Capacity (kg) 400 400 400
Max. Roller Height (mm) 870 1200 1500
Min. Roller Height (mm) 180/200 180/200 180/200
Outrigger Height (mm) 80 80 80
120(WE) 120(WE) 120(WE)
Max. Diameter of fit reel (mm) Ø200~Ø600 Ø200~Ø600 Ø200~Ø600
Roller Size (mm) Ø76x550 Ø76x550 Ø76x550
Roller Length (mm) 550~800 550~800 550~800
Roller Center (mm) 180(240) 180(240) 180(240)
Roller Material Rubber (PU, Galvanized Steel and Stainless Steel)
Front Load Wheel (mm) Ø75 Ø75 Ø75
Ø75(WE) Ø75(WE) Ø75(WE)
Rear Steering Wheel (mm) Ø125 Ø125 Ø125
Power Unit V/W 12/800 12/800 12/800
Battery V/Ah 12/60 12/60 12/60
Overall Size LxWxH (mm) 780x630x1070 780x630x1420 780x630x1720
Net Weight(PS/EP) (kg) 110 115 120
