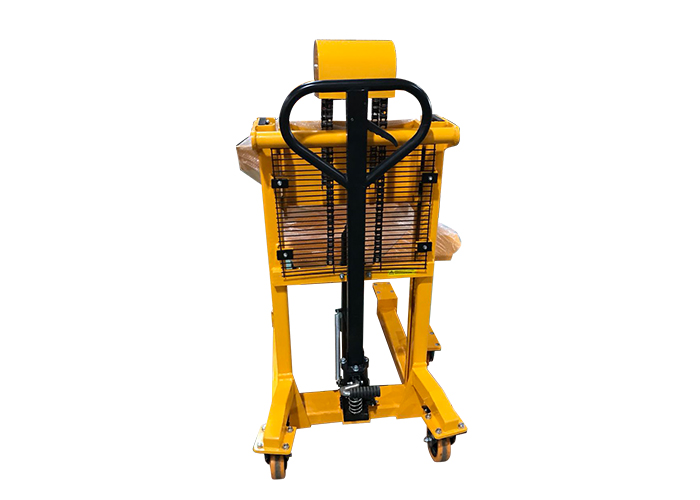

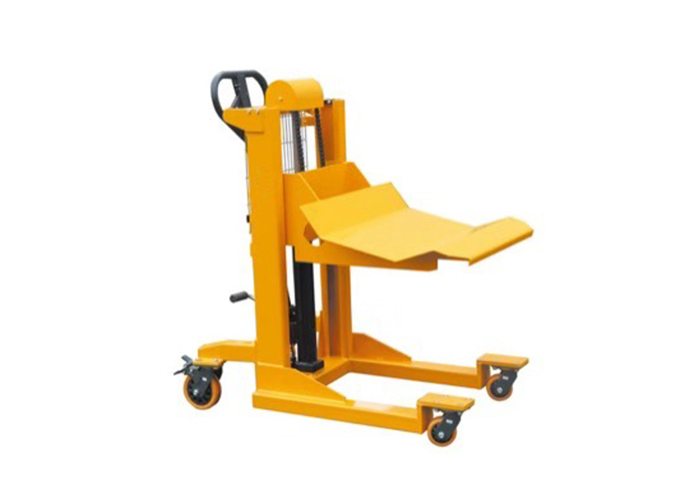

Name:MRL Arc Panel Roll Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
 Roll Handling Pallet Truck
 Triangular Forks Stacker
 Shaft Rod Handling Trolley
 V-shape Plate Handling Trolley
 Arc Panel Roll Handling Trolley
 The roller conveyor Handling Trolley
 Clamp Gripper Handling Trolley
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

MRL Arc Panel Roll Handling Trolley with the simple hydraulic hand pump


Structure made of high resistance steel rolled sections to ensure the highest degree of strength and durability.
Large media and heavy material rolls are handled quickly and easily.
The simple hydraulic hand pump makes lifting effortless.
Material damage is reduced or eliminated when moving rolls.
ERL1000T is with electric lifting, high-efficiency for heavy loading.

Specifications:
Model MRL0786 MRL1086 MRL1015
Operation Manual
Load capacity (kg) 700 1000 1000
Lifting Height (mm) 865 865 1500
Max.width of reel/roll (mm) 1550 1550 1550
Max.diameter of reel/roll (mm) 800 800 800
Reel Tray Wdith (mm) 700 700 700
Overall Length (mm) 1165 1165 1350
Overall Wdith (mm) 700 700 800
Overall Height (mm) 1130 1130 2060
Net Weight (kg) 150 160 220
