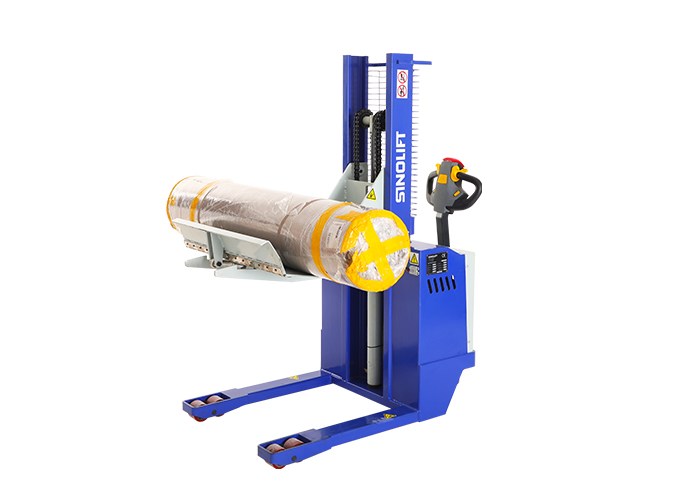

Name：CDD1000-M700 CDD1500-M700 Roll & Reel hydraulic Stacker
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
 01 Roll and Reel Pallet Truck
 02 Roll And Reel Hydraulic Stacker
 03 Spercial Roll And Reel Lifter
 04 Roll And Reel Work Positioner
 05 Roll And Reel Flip Clamp Stacker
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

CDD1000-M700 Full Electric Roll Handling Trolley


The SINOLIFT Reel Handling Trolley with powered traction and Auto-Tilting Craddle Lip. in addition to its high reliability and small dimensions, possesses all requirements needed for web handling and web feeding in rotary printing, flexographic, serigraphic, and cutting machines.
A wide range of construction variants allow to adapt the equipmet lay-out to any specific application.


Options
▲24-Volt D.C. power lift, AC Powered Lift, Pneumatic Lift or Air over Hydraulic Lift.
▲Scales with or without intrinsically safe indicators.
▲Reel presence limit switch.
▲Different lifting heights.
▲Any color finsished with epoxy powder coating.

Specifications：


Model CDD1000-M700 CDD1500-M700
Power Electric Move and Lifting
Operator Type Walkie Walkie
Load Capacity kg 1000 1500
Available Reel Diameter D mm 800~1400 800~1400
Load Center mm 465 465
Service Weight (Include Battery) kg 364 390
Battery Weight kg 34 34
Drive Wheel mm 210 210
Front Roller mm Φ80*68 Φ80*68
Overall Length L mm 1388 1388
Overall Height H mm 1608 1608
Overall Width W mm 750 750
Wheelbase L1 mm 1245 1245
Lifting Height of Craddle h mm 1220 1220
Lowered Height of Craddle h1 mm 97 97
Craddle Size w1 mm 930*258 930*258
Min.Turning Radius mm 1200 1200
Travel Speed (no load/full load) km/h 4.5/3 4.5/3
Lifting Speed (no load/full load) mm/s 15/10 15/10
Lowwering Speed (no load/full load) mm/s 20/12 20/12
Exceeding Slope (no load/full load) % 10/4 10/4
Brake Emergency Electronmagnetic
Traverse Motor kw DC 1.0 DC 1.0
Lifting Motor kw 2.2 2.2
Battery Ah/V 60/24 60/24
Controller MOSFET MOSFET
Brand CURTIS CURTIS
DBS
