Products – Roll Handling Trolley

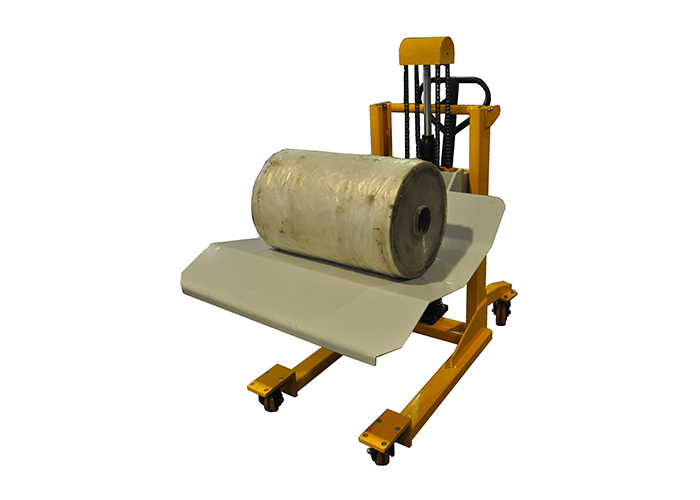

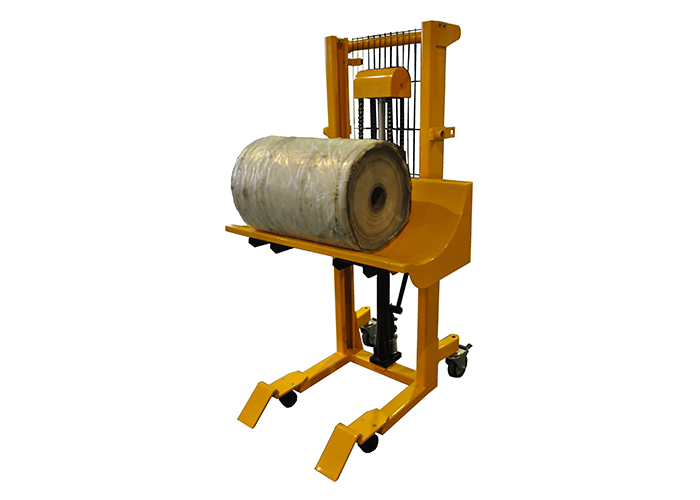

Name：PFZ Arc Panel Roll Handling Trolley
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

PFZ Arc Panel Roll Handling Trolley

▲Easy to operate lifts are available in steel or aluminum construction for long life.
▲Lift and transport loads from delivery trucks, to docks, maintenance work or use in inventory items.

Smooth rolling on 6" x 2" mold-on-rubber wheels on the back of the lift and 2" dia. semi-steel wheels, suffix (-FW). Four swivel front wheels and floor lock are standard on units with suffix (-4SFL). Wheels are also at the top of each truck to allow for easy accessibility into delivery trucks. Low Profile units have 1/4" thick platform with 2"H. side lips. Horizontal load center is 10". FOB Shipping Point.

Specifications：
Model PFZ6150 PFZ8150
Max.Capacity kg 600 600
Operation mode Manul
Load Centre mm 300
Max.Fork Height mm 1200(1500)
Min.Fork Height mm 90(universal front wheel)
Fork Size(L×W) mm 700×120
Front Wheel Diameter mm Φ80 Φ80
Rear Wheel Diameter mm Φ150 Φ150
Overall Size(L×W×H) mm 980×600×1500 980×620×1580
Net Weight kg 115 128
