Products – Roll and Reel Handling Equipment

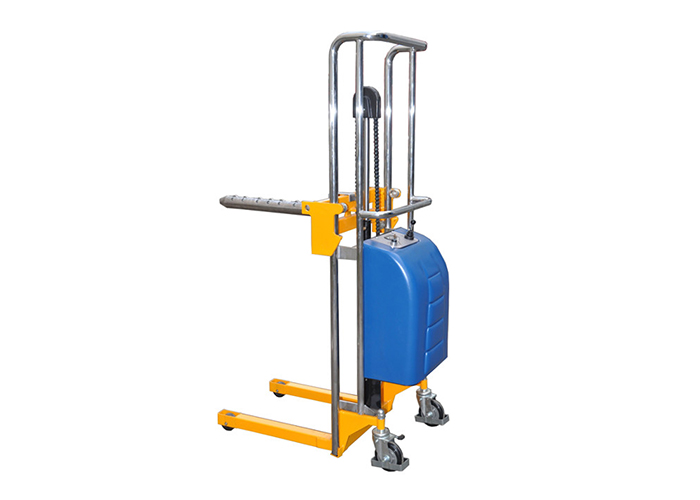

Name:EJ-A Roller Shaft Rod Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
 Roll Handling Pallet Truck
 Triangular Forks Stacker
 Shaft Rod Handling Trolley
 V-shape Plate Handling Trolley
 Arc Panel Roll Handling Trolley
 The roller conveyor Handling Trolley
 Clamp Gripper Handling Trolley
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

EJ-A Roller Shaft Rod Handling Trolley with low profile forks

▲ Low profile forks can lift the pallet easily.
▲ Easier and faster lifting operation.
▲ High quality hydraulic motor made in Italy.
▲ Service free battery.
▲ Option platform available.
▲ No-marking castor as standard.
▲ Conforms to EN1757.

Specifications:
Model (Adjustable Fork) EJ4120A EJ4150A EJ4180A
Capacity (kg) 400 400 200~400
Max.Fork Height (mm) 1200 1500 1800
Min.Fork Height (mm) 85 85 85
Fork Size (mm) 650x100 650x100 650x100
Fixed Fork Width EF series (mm) 550 550 550
Adjustable Fork Width EJ series (mm) 235-500 235-500 235-500
Load Roller (mm) Ф75 Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125 Ф125
Power Unit (KW) 0.8 0.8 0.8
Battery (V/Ah) 12/60 12/60 12/60
Overall Height (mm) 1410 1710 2010
Overall Width (mm) 590 590 590
Overall Length (mm) 1100 1100 1100
Net Weight EF series (kg) 105 108 114
EJ series (kg) 108 110 116
