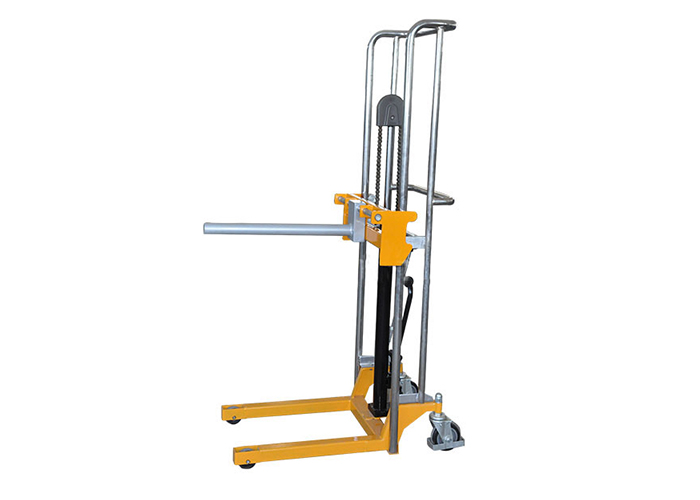

Name:PJ-A Single Shaft Rod Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
 Roll Handling Pallet Truck
 Triangular Forks Stacker
 Shaft Rod Handling Trolley
 V-shape Plate Handling Trolley
 Arc Panel Roll Handling Trolley
 The roller conveyor Handling Trolley
 Clamp Gripper Handling Trolley
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

PJ-A Single Shaft Rod Handling Trolley with hard chromium plated frame

▲Robust construction.

▲Hard chromium plated frame.
▲Effortless Movement.
▲Polyurethane rollers with bearing.
▲No-marking castor as standard.

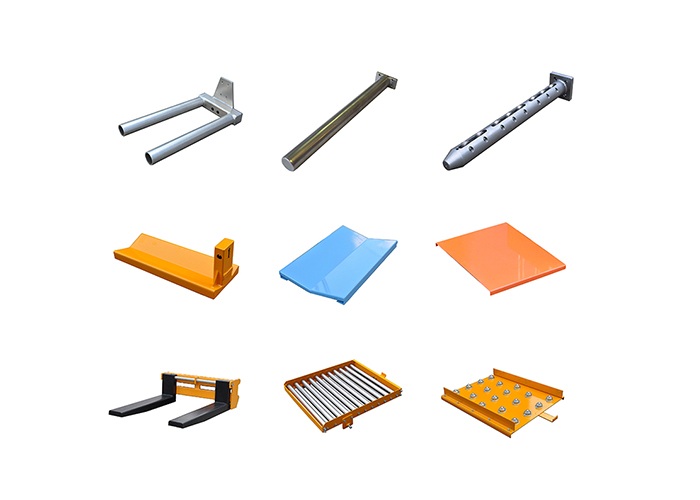

▲Widely used with low leg and various accessories as option.
▲The V-Shaped plate is suitable for printing work, flexible package industry.
▲Conforms to EN 1757-1.
Specifications:


Model (Adjustable Fork) PJ2085A PJ2120A PJ4085A PJ4120A PJ4150A
Capacity (kg) 200 400
Max.Fork Height (mm) 850 1200 850 1200 1500
Min.Fork Height (mm) 85 85
Fork Length (mm) 600 650
Fixed Fork Width PF/EF (mm) 500 550
Adjustable Fork Width PJ/EJ (mm) 215-500 235-500
Load Roller (mm) Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125
Pump strokes to Max.Height 19 26 35 50 63
Chassis Height EF/EJ(mm) 32.5 22.5
Power motor EF/EJ(KW) 0.8 0.8
Battery (Ah/V) Dec-60 Dec-70
Overall Height (mm) 1080 1435 1060 1410 1710
Overall Width (mm) 560 590
Overall Length PF/PJ(mm) 1020 1100
EF/EJ(mm)
Net Weight PF (kg) 55 62 70 76 82
PJ (kg) 58 65 75 81 85
EF (kg) 90 97 105 116 122
EJ (kg) 93 100 110 121 127
Option Platform LP10 LP20
