Products – Roll and Reel Handling Equipment

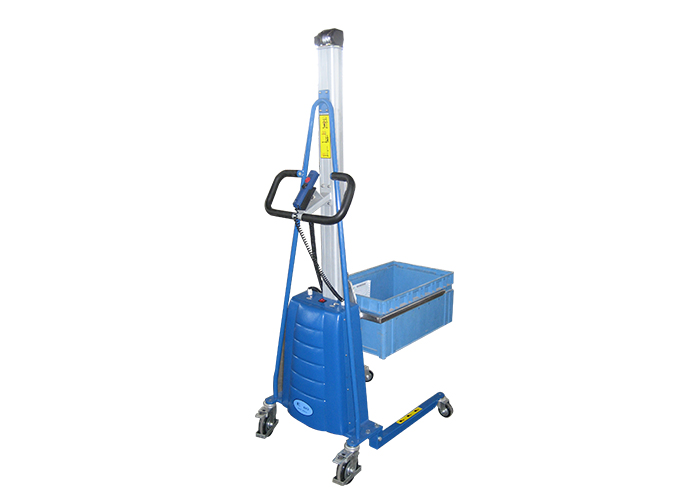

Name:E100A Double Shaft Rod Handling Trolle
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
 Roll Handling Pallet Truck
 Triangular Forks Stacker
 Shaft Rod Handling Trolley
 V-shape Plate Handling Trolley
 Arc Panel Roll Handling Trolley
 The roller conveyor Handling Trolley
 Clamp Gripper Handling Trolley
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

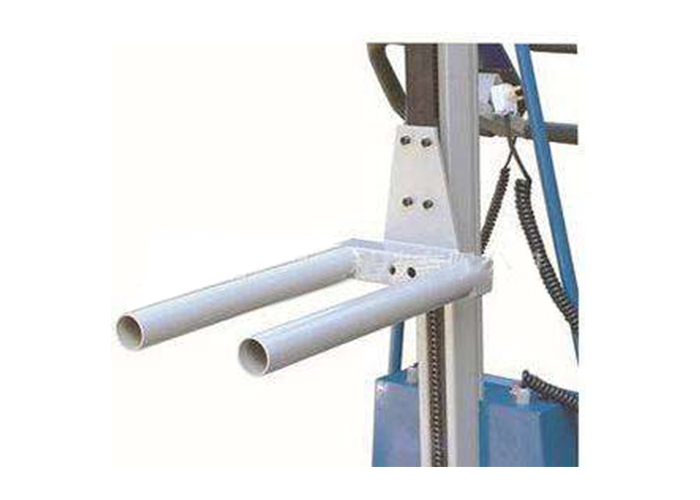

E100A Double Shaft Rod Handling Trolley


▲ Stronger motor, Larger battery 12Ah, Low voltage protection.
A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.

Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc.

Various special design and optional accessories can be widely used.

▲ Electric models: Automatic electronic overload protection system ensures safety.
Maintenance free and sealed batteries, automatic charger.

▲ Quick change attachment options available.

▲ Conforms to EN1757, CE marked.

Specifications:
Technical Specifications
Model E100A E150A
Capacity 100 kg 150 kg
Load Centre 235 mm
Max. Height 1700 mm 1500 mm
Min. Height 130 mm
Platform size 470 x 600 mm
Load Wheel 75 mm
Steering Wheel 125 mm
Battery 24V, 12 Ah
Net weight 63 kg 66 kg
Previous:E100A Single Shaft Rod handling TrolleyNext:PJ-A Single Shaft Rod Handling TrolleyReturn
