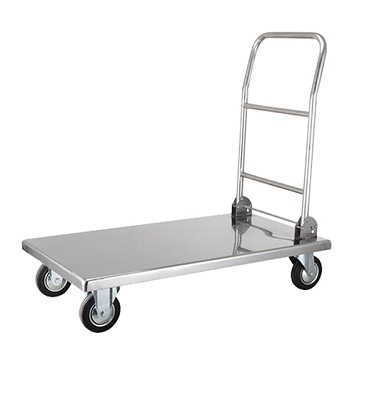

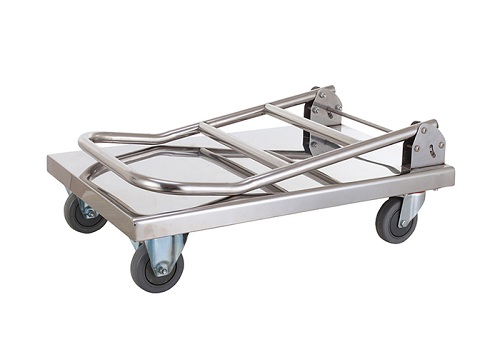

Name:LF MF NF series  Four Wheels 201 Stainless Steel Platform Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
 M series Manual Winch Work Postioner
 E Series Electric Work Postioner Lift
 Other Spercial Work Postioner Lift Trolley
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Heavy duty design with load capacity of 500kg-1000kg

2.All 201 stainless structure, including wheel frames and bolts.

3.Silent casters: two swivels and two rigid

4.Widely used in medicine factory, food factory, supermarket and various plants

5.Materia SUS304 is available.

Specifications:

Model

Capacity (kg)

Net weight (kg)

Platform size (mm)

Platform height(mm)

Handle height(mm)

Wheel size(mm)

LF2436

500

23.7

610*915

215

840

125*50

LF2448

500

28

610*1220

215

840

125*50

LF3048

500

30.5

760*1220

215

840

125*50

LF3060

500

35.5

760*1525

215

840

125*50

LF3672

500

44.5

915*1830

215

840

125*50

MF2436

1000

24.7

610*915

240

865

150*50

MF2448

1000

29

610*1220

240

865

150*50

MF3048

1000

31.5

760*1220

240

865

150*50

MF3060

1000

36.5

760*1525

240

865

150*50

MF3672

1000

45.5

915*1830

240

865

150*50

NF2436

600

31.5

610*915

280

905

200*50

NF2448

600

35.5

610*1220

280

905

200*50

NF3048

600

38

760*1220

280

905

200*50

NF3060

600

43

760*1525

280

905

200*50

NF3672

600

52

915*1830

280

905

200*50
