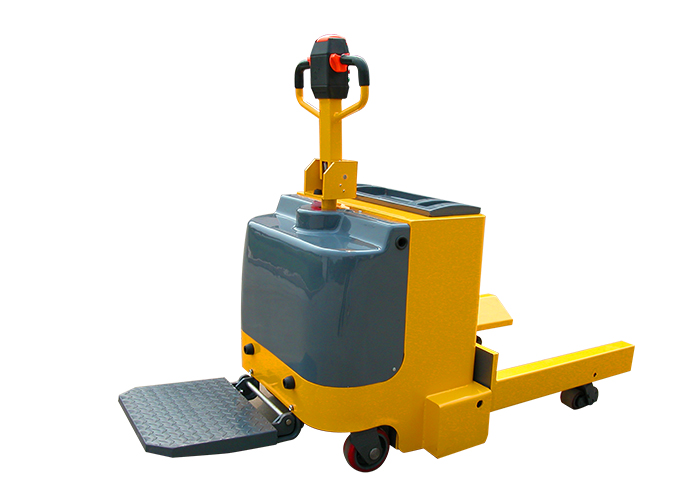

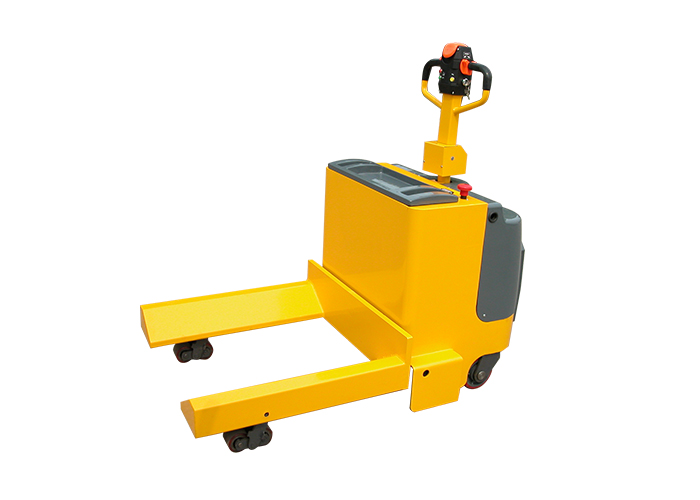

Name:CBE20R Electric Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
 Roll Handling Pallet Truck
 Triangular Forks Stacker
 Shaft Rod Handling Trolley
 V-shape Plate Handling Trolley
 Arc Panel Roll Handling Trolley
 The roller conveyor Handling Trolley
 Clamp Gripper Handling Trolley
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
CBE20R Electric Pallet Truck for easy transportation

CBE20R Battery Drive Pallet Truck for easy transportation of pallets in big plants & warehouses. For a long travel in plants it is a versatile machine to handle the pallets safely & quickly with minimum efforts.
Operator can control easily the whole systems for lifting & transportation of loaded pallets, standing on the platform attached with the pallet truck. Excellent after sale service and parts are available over the shelf.
▲Hydraulic pump station makes the lifting of goods steady and powerful.
▲Drive wheel installed with reliable dish style braking has strong power and steady. capability.
▲Electric control system reacts quickly and operates easily.
▲It has flexible linear heavy-duty design and tight structure, and it is suitable for narrow access and is flexible operated.
▲It is accorded to European standard of EN1757-1: 2001.
Specifications:
Model CBE-22F
Load capacity kg 2200
Operation Pedestrian with side guards
Load center mm 500
Driving wheel mm φ260*98 Polyurethane
Load wheel mm φ80*68 Polurethane
Balance wheel mm φ160*60 Nylon
Width front mm 460
Width rear mm 400
Lifting Height (Min/Max fork height) mm 120/240
Overall length mm 1680
Length to front face of forks mm 501
Single fork width mm 200
Fork width mm 860
Turning radius mm 1600
Travel speed (laden/unladen) km/h 6.0/7.0
Lifting speed (laden/unladen) mm/s 18/20
Lowering speed (laden/unladen) mm/s 20/18
Service brake Electromagnetic
Drive motor kw 0.9
Pump power pack (Lifting Motor) kw 2.2
Battery V/Ah D-210 24V/210Ah
Control system CURTIS AC
Overall dimensions mm 1680*860*1445
Self weight kg 690
