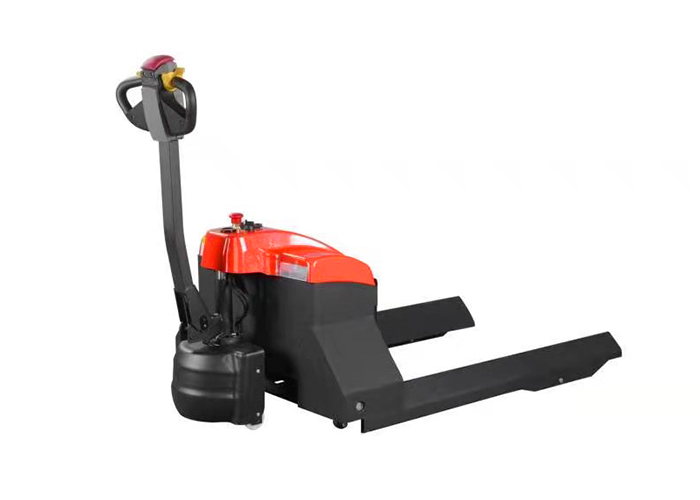

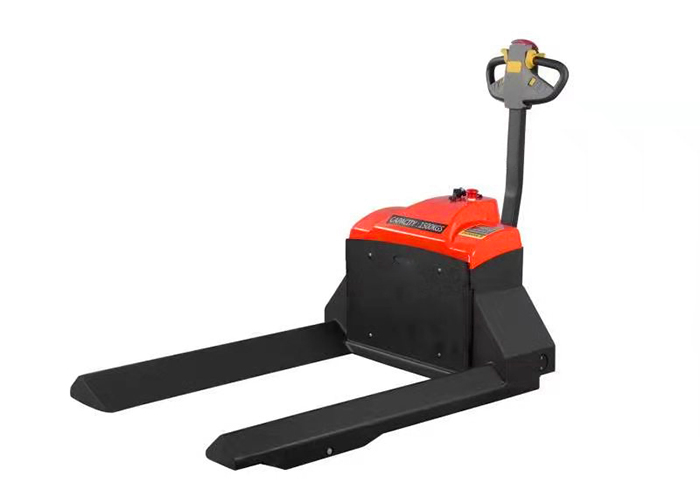

Name:CBD15R Electric Pallet Truck
Click to view larger

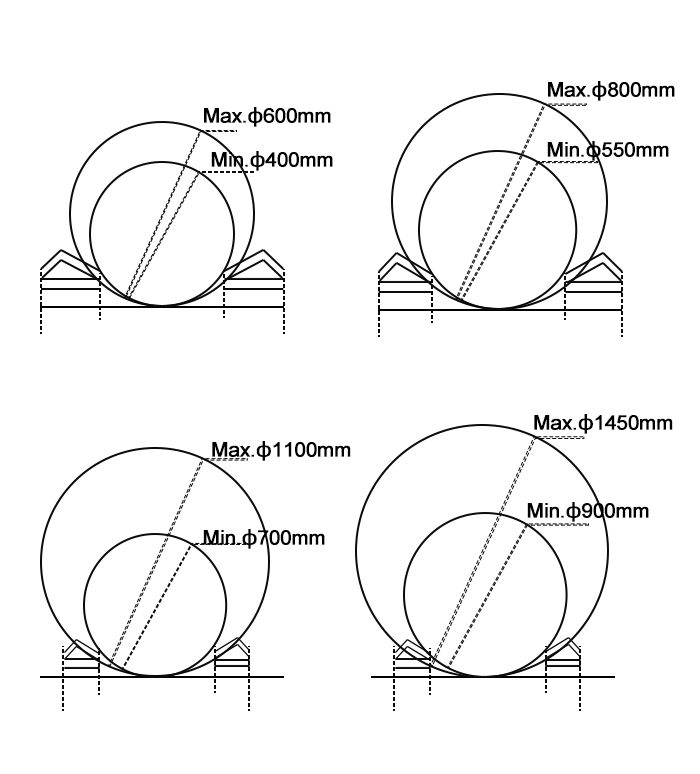

Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
 Roll Handling Pallet Truck
 Triangular Forks Stacker
 Shaft Rod Handling Trolley
 V-shape Plate Handling Trolley
 Arc Panel Roll Handling Trolley
 The roller conveyor Handling Trolley
 Clamp Gripper Handling Trolley
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

CBD15R Electric Pallet Truck with Reel Angled Forks
- Capacity 2000kg.
- Standard fork lengths 1000mm or 1150mm. Longer forks available on request.
- Compact design allows for easy manoeuvring in narrow aisles.
- External + Internal battery options.
- Ergonomic drive controls with microprocessor control.
- Heavy duty battery.
- Smooth stepless drive controls.
- Trucks carry CE mark and comply with all current safety legislation.
- Various widths of angled forks available to suit size of reels to be transported.
- Comprehensive warranty and superb after sales service provided.

Specifications:

Model CBD15R-A CBD15R-B CBD15R-C CBD15R-D
Capacity kg 1500
Reel diameter (Min. ~ Max.) mm Ø400-Ø600 Ø550-Ø800 Ø700-Ø1100 Ø900-Ø1450
Width inner forks A 320 400 500 800
Width overall forks B mm 720 800 900 1000
Steering wheel mm Φ210x70
balanced wheel mm Φ80x17
Load wheel mm Φ84x70
Fork length l mm 800/900/1000/1100/1150/1220 until Max. 2000mm
