Products – Platform Hand Trolley

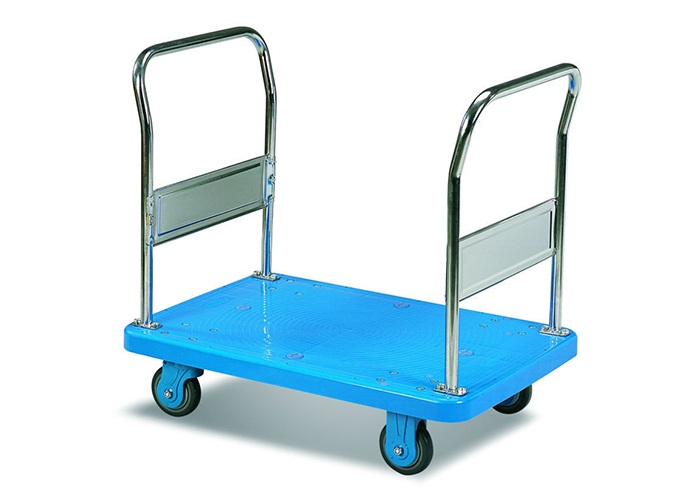

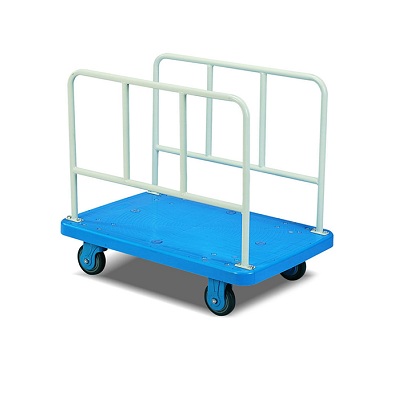

Name:PC201A PC201B PC201C PC301A PC302B PC302C PC302D Plastic Platform Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
 Plastic Platform Truck
 Four Wheels Platform Trolley
 Luggage Cart Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Structural Foam plastic platform won't rust, chip or dent

2.Honeycomb reinforced underside for added strength and durability

3.Special non-marking silence casters with built-in bearing, fit for using in silent surroundings.

4.Non-skid surface helps prevent load shifting.

5.Different handles are available.

Specifications:

Model




PC201A

PC201B

PC201C

PC301A

PC302B

PC302C

PC302D

Load capacity

kg

200

200

200

300

300

300

300

Platform dimensions

mm

730*490

730*490

730*490

910*600

910*600

910*600

910*600

Platform height

mm

170

170

170

220

220

220

220

Castor

mm

100*30

100*30

100*30

130*30

130*30

130*30

130*30

Net weight

kg

10

11

12.5

16

20

15

19

No of handle

/

1

1

2

1

1

2

2

Handle Height

mm

890

890

890

890

890

890

890

Gross weight

kg

12

13

14.5

18

22

17

21
