Products – Mini Stacker

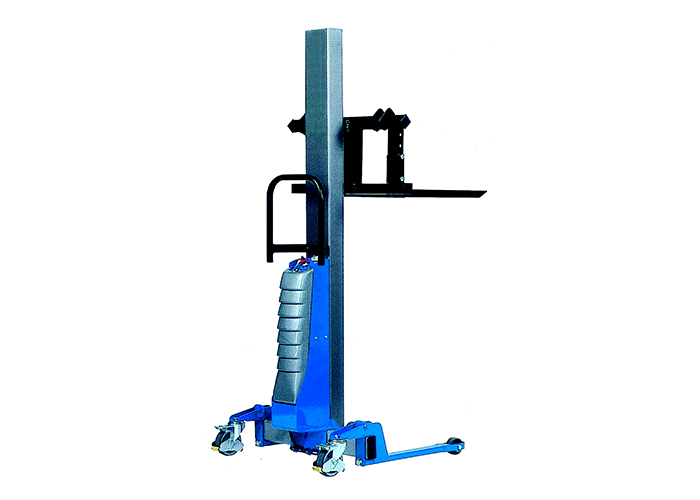

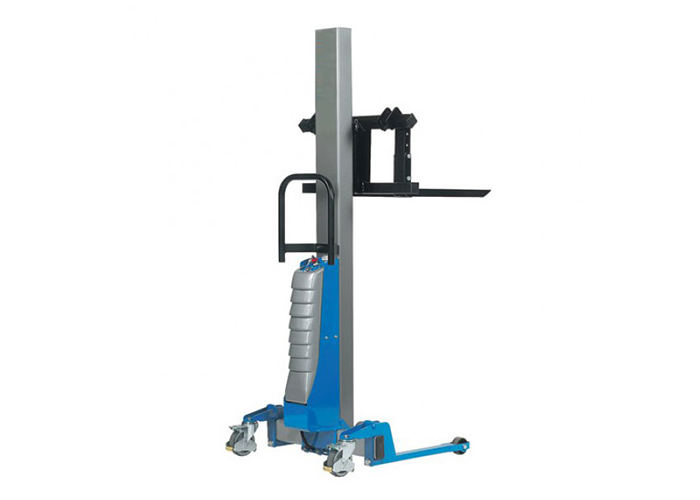

Name:EG260 EG260(H) Semi-Electric Hydraulic Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
EG260 EG260(H) Semi-Electric Hydraulic Stacker with incredibly light and mobile

The Record EG260 EG260H Electric Stacker certainly lives up to its name.It is incredibly light and mobile giving you

the “freedom” to move it easily across your warehouse facility. You can even move it from room to room if needs be as

it neatly fits through standard doorways.


It is capable of lifting an endless array of things including plastic boxes and half euro pallets. Surprisingly, considering

its lightweight frame, it has a lifting capacity of 260kg.

Specifications:
Model   EG260 EG260H
Capacity kg 260 260
Max. Platform (Fork) Height mm 1700 2000
Min. Platform (Fork) Height mm 90 90
Leg Height mm 80 80
Leg Outside Width mm 720 (500 -720) 720 (500 -720)
Platform Size mm 550x650 550x650
Fork Size mm 600x80 600x80
Front Wheel mm Ø80 (Ø100) Ø80 (Ø100)
Rear Steering Wheel mm Ø125 Ø125
Power Pack Motor V/W 12/800 12/800
Battery V/Ah 12/45-60Ah 12/45-60Ah
Overall Height mm 1116 1116
Overall Width mm 720 720
Overall Length mm 1960 2245
Net Weight mm 128 138
