Products – Mini Stacker



Name:EZ Semi-Electric Counter weight Hydraulic Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

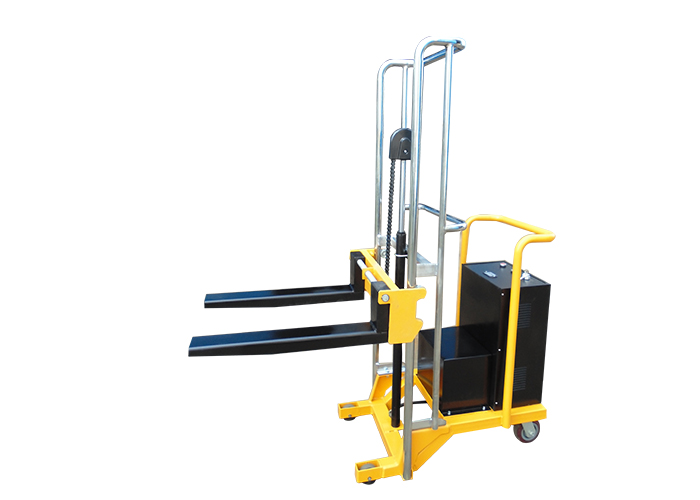

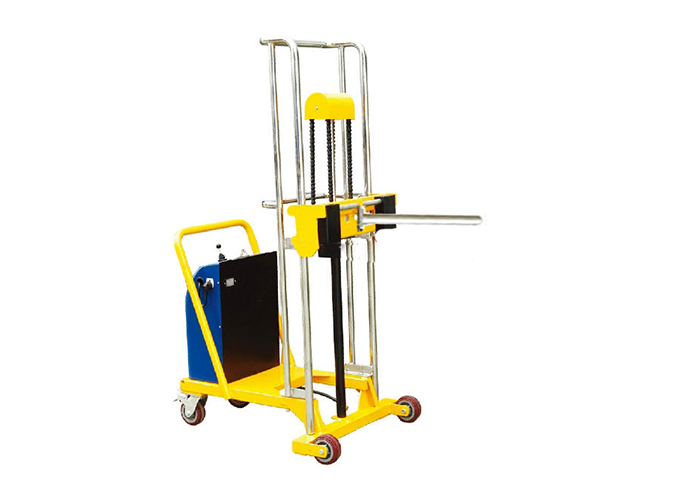

EZ Semi-Electric Counter weight Hydraulic Stacker with high-quality electric pump

Design of balanced counter weight and ultralow forks are more suitable for the use of special station.

High-quality electric pump and built-in charge provide easy and flexible operation.

Design of counter weight ensure safe and reliable operation.

Chromed frame and delicate model with durability.

▲ Easier and faster lifting operation.
▲ High quality hydraulic motor made in Italy.
▲Maintenance-free battery and clear operating display.
▲Built-in charge can be very convenient and safety.
▲ Counter-weight structure ensure easily to enter into any load pallets.
▲ No-marking castor as standard.
▲ Conforms to EN1757:1 2001.

Specifications:
Model EZ2585 EZ2512 EZ2515
Capacity (kg) 200~250 150~250 150~250
Max. Fork Height H (mm) 750 1100 1400
Min. Platform Height H1 (mm) 20(60) 20(60) 20(60)
Fork Size L1 (mm) 550x70 550x70 550x70
Fork Size W (mm) 600x100 600x100 600x100
Fork Adjustable Width D (mm) 155~550 (superlow) 215~550 (standard)
Front Load Wheel d (mm) Ø125x50 Ø125x50 Ø125x50
Rear Steering Wheel d (mm) Ø125x50 Ø125x50 Ø125x50
Lifting Speed (Laden/Unladen) mm/s 95/130 95/130 95/130
Lowering Speed (Laden/Unladen) mm/s 115/65 115/65 115/65
Power Unit V/kw 12/0.8 12/0.8 12/0.8
Battery V/Ah 12/60 12/60 12/60
Net Weight(PS/EP) (kg) 218 225 230
Noise-free Castor O O O
Previous:EJ Semi-Electric Hydraulic StackerNext:EJ+LP Semi-Electric Hydraulic StackerReturn
