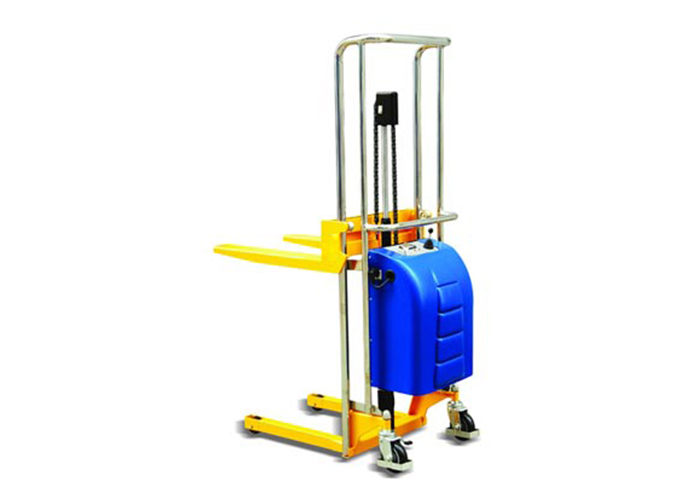

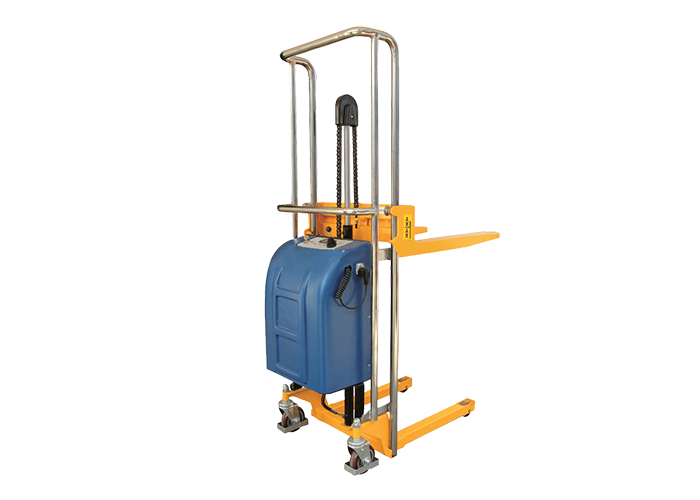

Name:EF Semi-Electric Hydraulic Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
 01 Winch Mini Stacker
 02 Manual Hydraulic Mini stacker
 03 Semi-electric Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Model (Fixed Fork)   EPF4120A EPF4150A EPF4180A
Capacity (kg) 400 400 200~400
Max.Fork Height (mm) 1200 1500 1800
Min.Fork Height (mm) 85 85 85
Fork Size (mm) 650x100 650x100 650x100
Fixed Fork Width (mm) 550 550 550
Load Roller (mm) Ф75 Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125 Ф125
Power Unit (KW) 0.8 0.8 0.8
Battery (V/Ah) 12/60 12/60 12/60
Overall Height (mm) 1410 1710 2010
Overall Width (mm) 590 590 590
Overall Length (mm) 1100 1100 1100
Net Weight (kg) 105 108 114
Specifications:

EF Semi-Electric Hydraulic Stacker with low profile forks



▲Low profile forks can lift the pallet easily.
▲ Easier and faster lifting operation.
▲ High quality hydraulic motor made in Italy.
▲Service free battery.
▲ Option platform available.
▲ No-marking castor as standard.
▲Bespoke design can meet various technique requirements.
▲ Conforms to EN1757.
